AluminumFolding doorsFOLDING-SLIDING DOOR | Aluprof MB-86 FOLD LINE HD
FOLDING DOORS FOR SEAMLESS TRANSITION BETWEEN THE INSIDE AND OUTSIDE

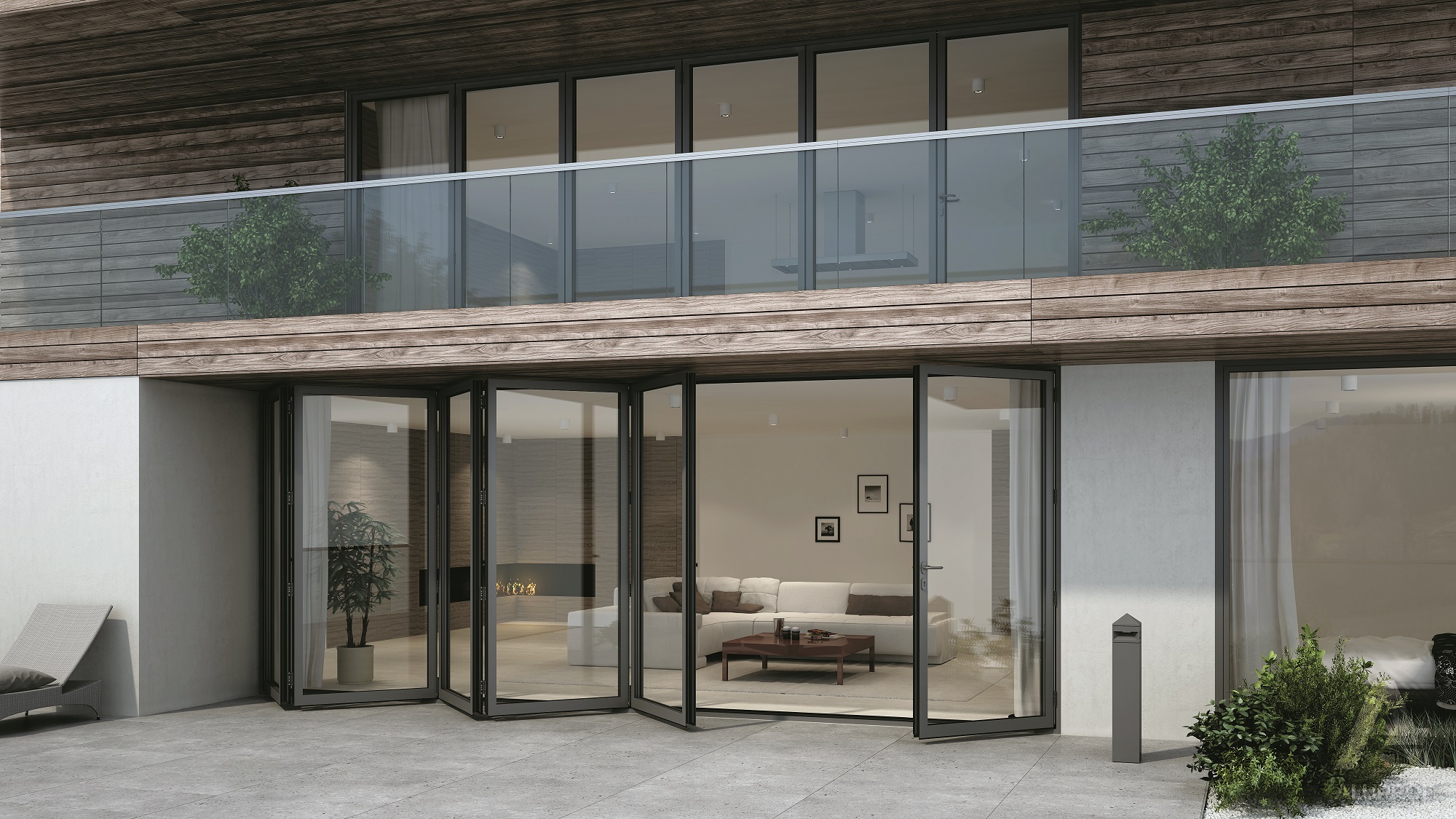

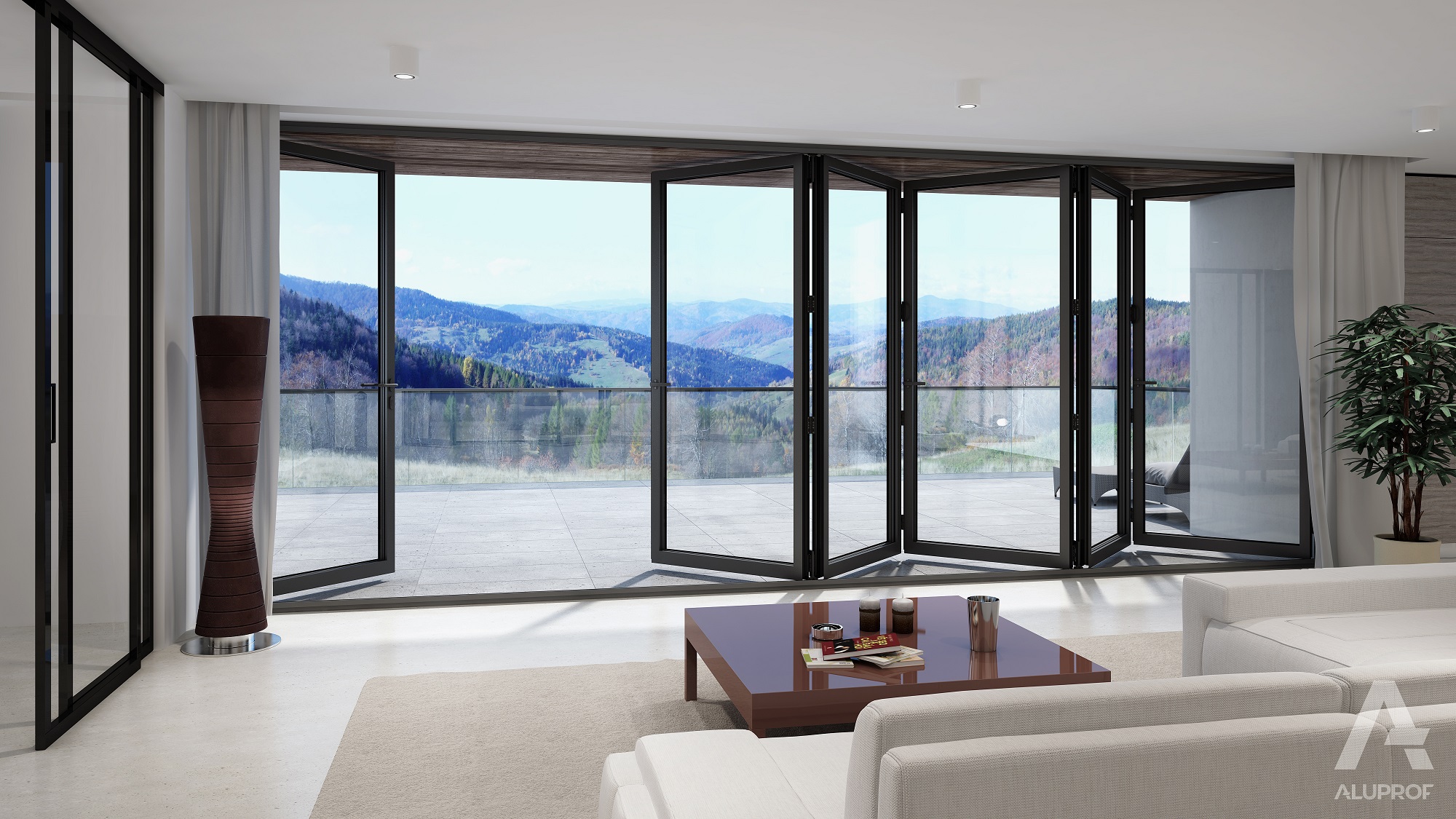

The MB-86 FOLD LINE HD is a solution which provides plenty of comfort in its daily use, it can be used to create an excellent, expansive way out onto a patio or to link a restaurant or café with the outdoor spaces it uses seasonally. At the same time, it also makes it possible to create large-scale structures. The folding doors can open outwards or inwards and the sashes can be configured as desired. This state-of-the-art product is designed to meet the exhaustive demands of users, architects and developers alike.
Please contact our sales team for any further information.
- Information
- Profile colors
- Glass
Information

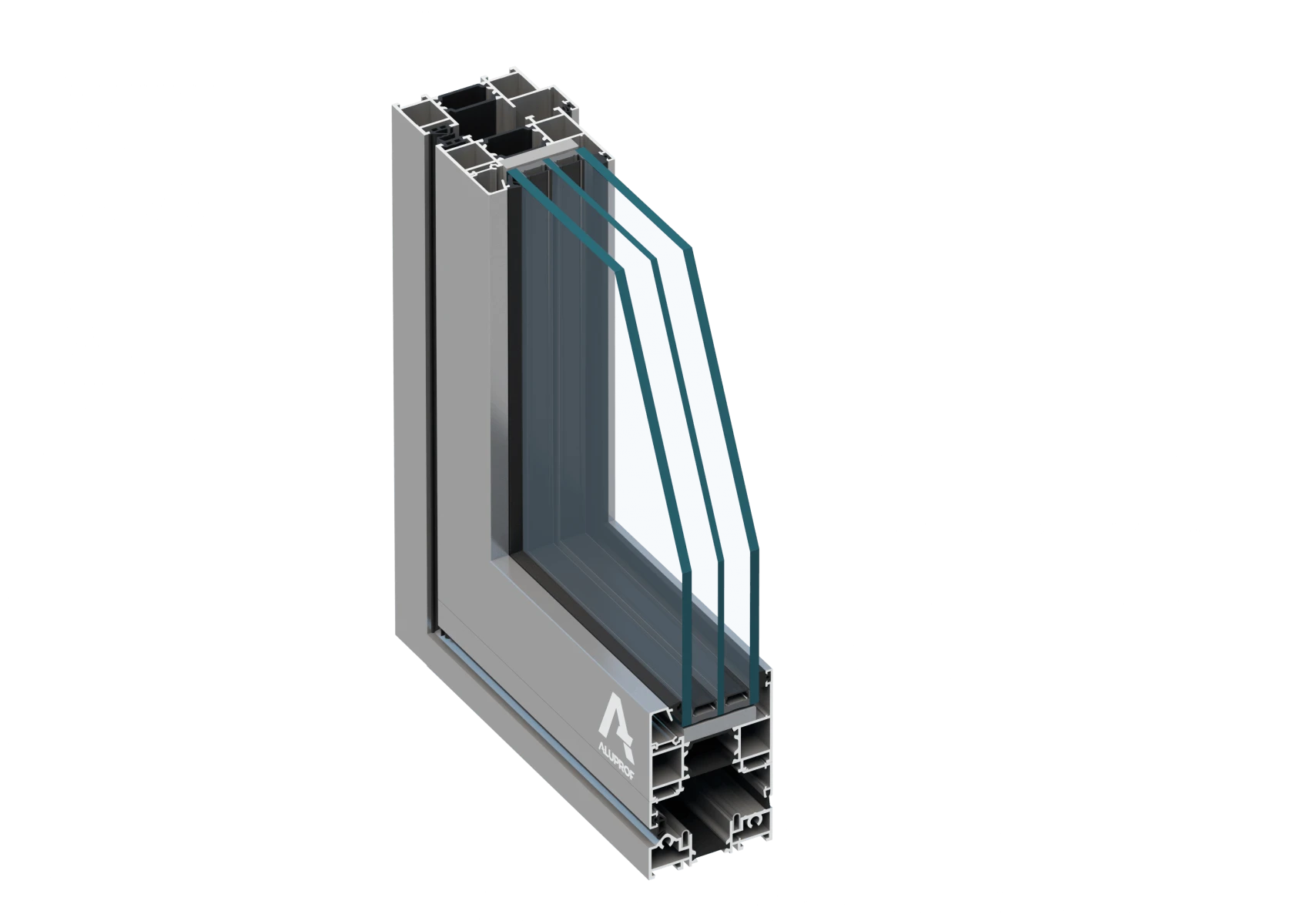

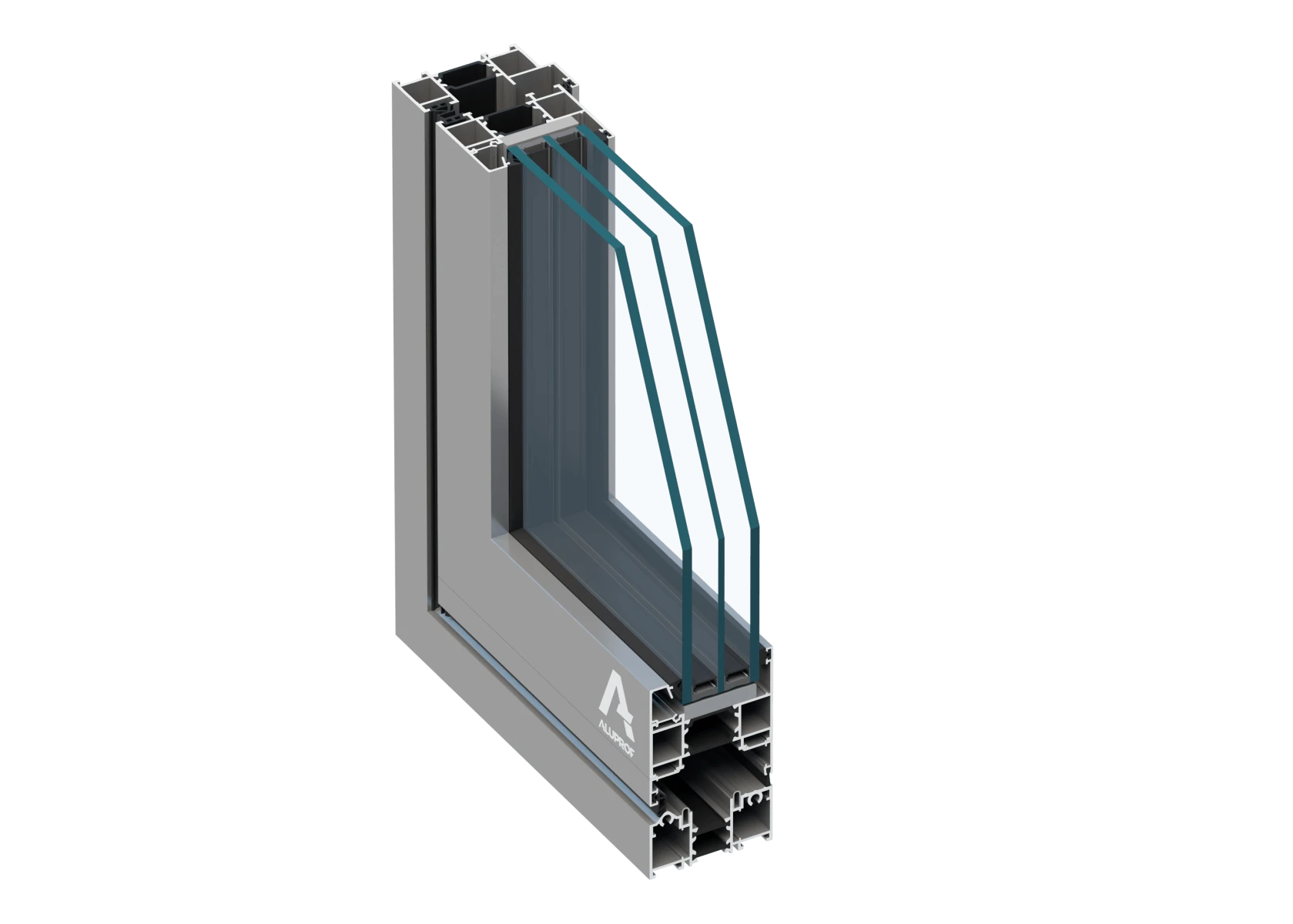

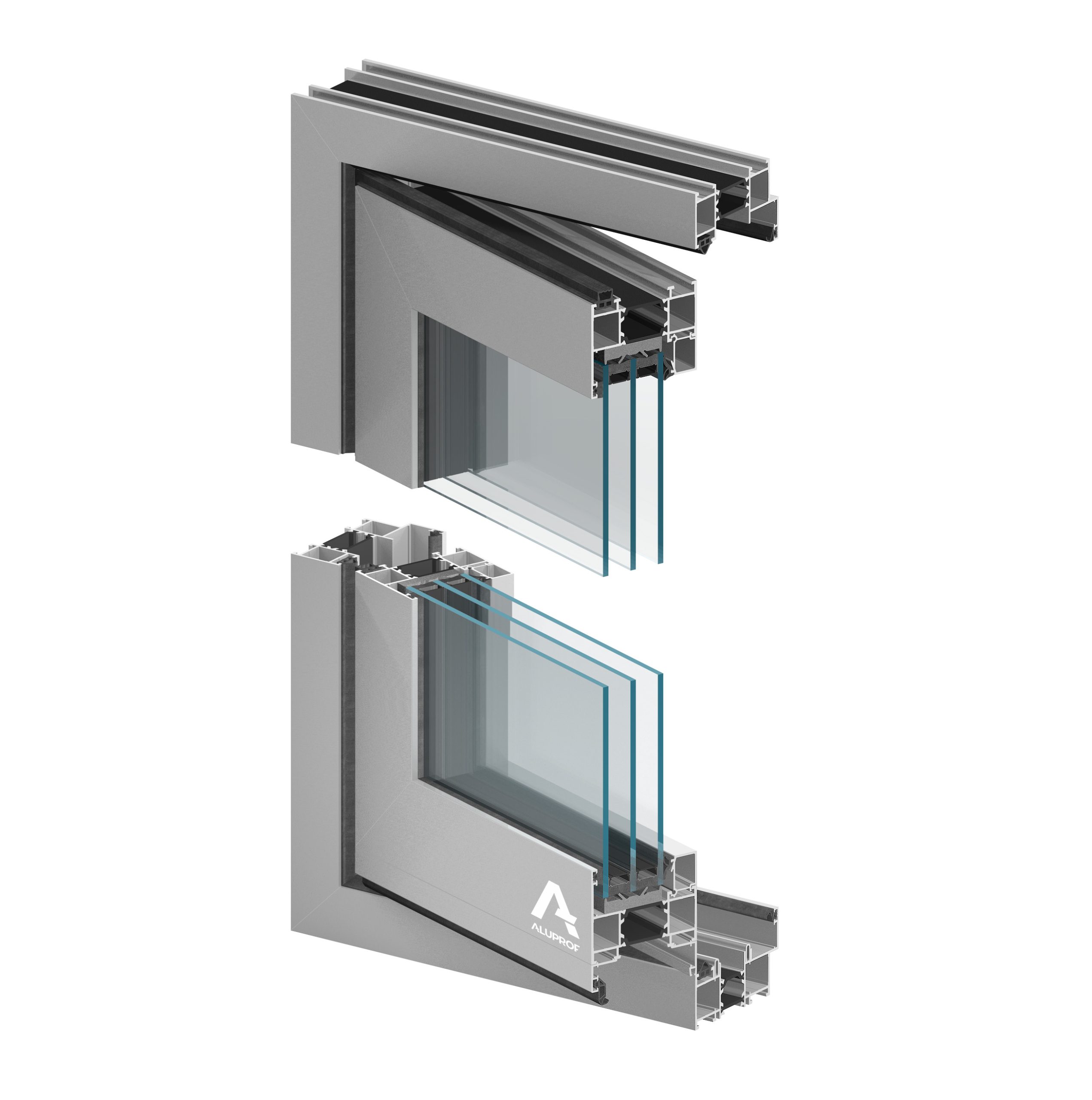

| Profile system | MB-86 FOLD LINE HD Highly thermally insulated |
| Function | Folding & sliding door Inside or outside sliding |
| Dimensions | Basic depth 77 mm Threshold height 54 mm, 13,5 mm |
| Basic features | Thermal insulation ≥ Uw 1,20 W/m²K Wind load resistance up to Class C1, Class B1, Class A2 Watertightness up to class 4A Air permeability up to class 4 Burglar resistance up to class RC2 |
| Enhanced features | Options for glass units Options for profile colours: RAL Classic Options for profile surface finishing: powder, anodising, powder after anodising |
Profile colors
Options:
- Powder painting, according to RAL, 70% gloss, satin finish (standard)
- Powder painting, according to RAL, 30% gloss matt finish (optional)
- Powder painting, according to RAL, metallic colors
- Powder painting, according to RAL, structural surface
- Special: anticorrosive pre-anodizing before powder painting
- Anodizing in 6 colors. Standard – natural aluminium E6/EV1 (C0)
- Different colors on the inside and outside are possible
- All RAL colors are possible according to request. Additional costs may apply
Glass
Insulated glass units
Insulated glass units play significant role achieving pleasant, comfortable indoors environment, high thermal properties and preventing heat loss. Our standard 2 -layers or high-performance 3-layers insulated glass units are produced with energy-saving low-emissivity (Low-E) selective coating and filled with argon gas. Warm edge spacer bars between glass layers significantly reduce conductivity (compared to alu) and uplift the overall U-value of a window. Depending on the purpose, insulated glass units can have additional characteristics: safety & security, solar or sound control and etc.
Below, our special glasses range. Contact us for more information.
Safety & security glass units
Safe and secure insulated glass units can be tempered, laminated or combine both characteristics in one. It provides protection against the risk of injuries due to accidental breakage and serves for protection of property from vandalism to burglary. Several options are available depending on required level of safety/security.
Solar control glass units
Solar control glass units reflect and filter the sun’s rays, protect all the interior surfaces from fading at same time allowing natural daylight into the room without uncomfortable visual glare. If you are worried about overheating where the glass is under direct or frequent sun exposure, then the insulated solar control glass units is your choice.
Sound control glass units
In order to avoid annoying traffic noise we recommend to choose insulated sound control glass units with increased noise reduction level. We offer a broad range of special glasses depending on desired acoustic level.
Glass controls noise by:
- Reflecting the noise back towards the source,
- Absorbing the noise within the glass.
Self-cleaning glass units
Self-cleaning glass with special coating is the ideal solution for higher floor buildings with limited cleaning access. The glass uses the natural daylight and the rainwater to break down organic dirt. It also dries quicker and tends not to leave as many streaks, or traces of water. As long as you have daylight and rain, it’s nearly maintenance free.
Anti-fog glass units
The occurrence of external condensation can be a problem, especially in spring and autumn on high thermal insulated windows or doors. Anti-fog glass units significantly reduce the amount of external condensation and make your living space more comfortable while ensuring a clear view through the window.
Decorative glass units
Decorative glass units with timeless textured patterns enhance style and design for your windows and doors. It
is an elegant way to create privacy to certain areas.
Decorative glass
Sun control glass
*Glass visuals are for guidance only and may slightly differ from the originals.
