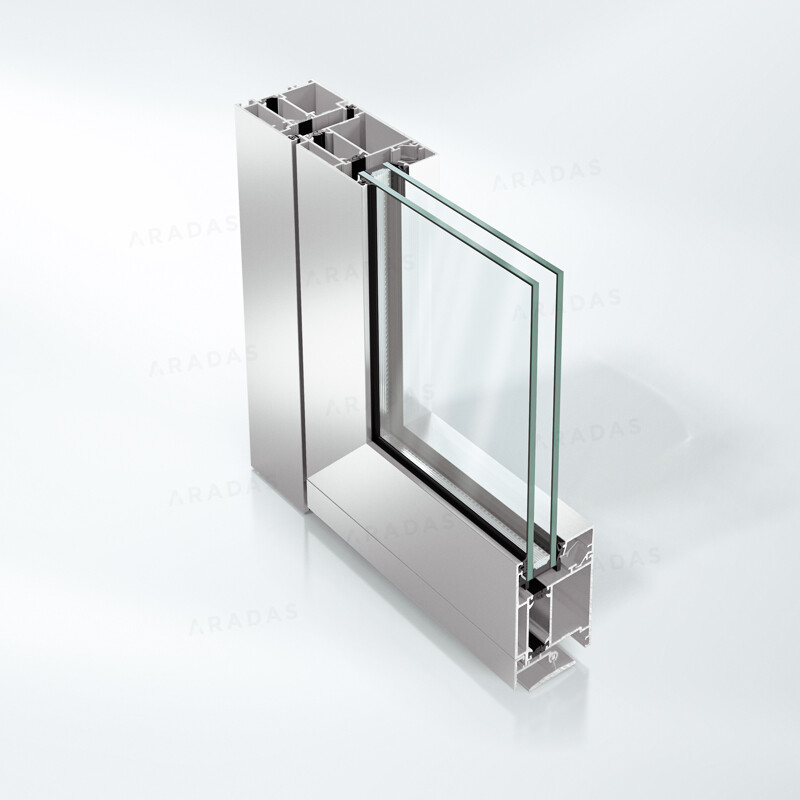

ADS 65/ 65 HD ECONOMICAL SOLUTION
ADS 65/ 65 HD door systems combine flexible thermal insulation levels, weathertightness, security, intelligent functionality, durability with harmonious, timeless design.
ADS 65/ 65 HD door system allows to have options for wide range of secure and convenient door access and managment modules: from single and simple Fingerprint Easy module to unique, complex and sophisticated Door Control System (DCS).
Please contact our sales team to assist for any further information.
|Profile system||ADS 65/ 65 HD
|Dimensions||Basic depth 65 mm|
|Basic features||ADS 65/ 65 HD
up to Uw 1.6 W/m²K (ADS 65)
up to Uw 1.8 W/m²K (ADS 65 HD)
Sound reduction index up to 43 dB
Air permeability up to class 2
Watertightness up to class 5A
Wind load resistance up to class C3
Burglar resistance up to class RC3
|Enhanced features||Fingerprint Easy
DCS door control system
Options for glass units
Options for profile colours: RAL Classic
Options for profile surface finishing: powder, anodising, powder after anodising
Insulated glass units
Insulated glass units play significant role achieving pleasant, comfortable indoors environment, high thermal properties and preventing heat loss. Our standard 2 -layers or high-performance 3-layers insulated glass units are produced with energy-saving low-emissivity (Low-E) selective coating and filled with argon gas. Warm edge spacer bars between glass layers significantly reduce conductivity (compared to alu) and uplift the overall U-value of a window. Depending on the purpose, insulated glass units can have additional characteristics: safety & security, solar or sound control and etc.
Below, our special glasses range. Contact us for more information.
Safety & security glass units
Safe and secure insulated glass units can be tempered, laminated or combine both characteristics in one. It provides protection against the risk of injuries due to accidental breakage and serves for protection of property from vandalism to burglary. Several options are available depending on required level of safety/security.
Solar control glass units
Solar control glass units reflect and filter the sun’s rays, protect all the interior surfaces from fading at same time allowing natural daylight into the room without uncomfortable visual glare. If you are worried about overheating where the glass is under direct or frequent sun exposure, then the insulated solar control glass units is your choice.
Sound control glass units
In order to avoid annoying traffic noise we recommend to choose insulated sound control glass units with increased noise reduction level. We offer a broad range of special glasses depending on desired acoustic level.
Glass controls noise by:
- Reflecting the noise back towards the source,
- Absorbing the noise within the glass.
Self-cleaning glass units
Self-cleaning glass with special coating is the ideal solution for higher floor buildings with limited cleaning access. The glass uses the natural daylight and the rainwater to break down organic dirt. It also dries quicker and tends not to leave as many streaks, or traces of water. As long as you have daylight and rain, it’s nearly maintenance free.
Anti-fog glass units
The occurrence of external condensation can be a problem, especially in spring and autumn on high thermal insulated windows or doors. Anti-fog glass units significantly reduce the amount of external condensation and make your living space more comfortable while ensuring a clear view through the window.
Decorative glass units
Decorative glass units with timeless textured patterns enhance style and design for your windows and doors. It
is an elegant way to create privacy to certain areas.
Sun control glass
*Glass visuals are for guidance only and may slightly differ from the originals.
