WITH ELBRO / Geneo® WE CREATE THE MOST ENERGY EFFICIENT WINDOWS IN THEIR CLASS

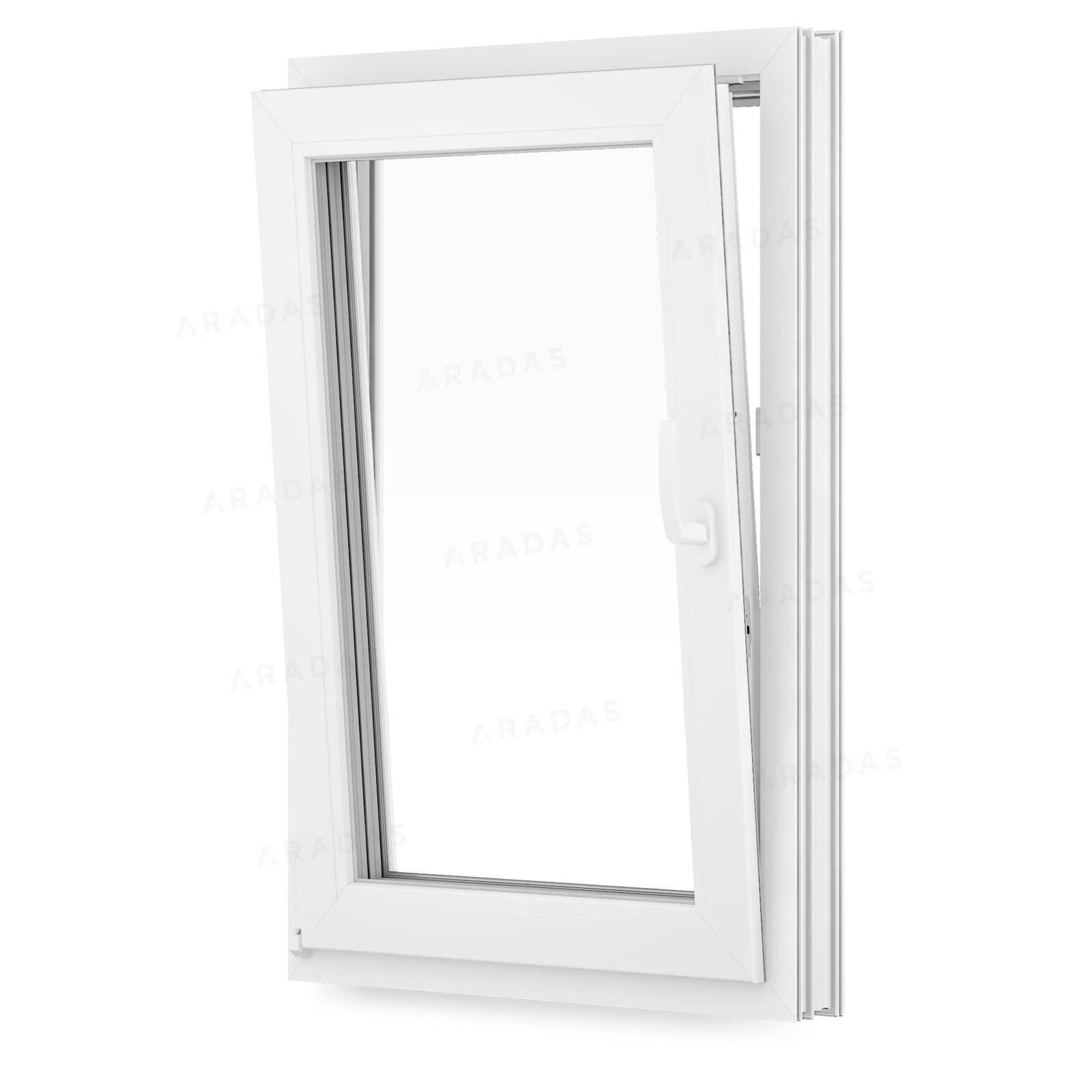

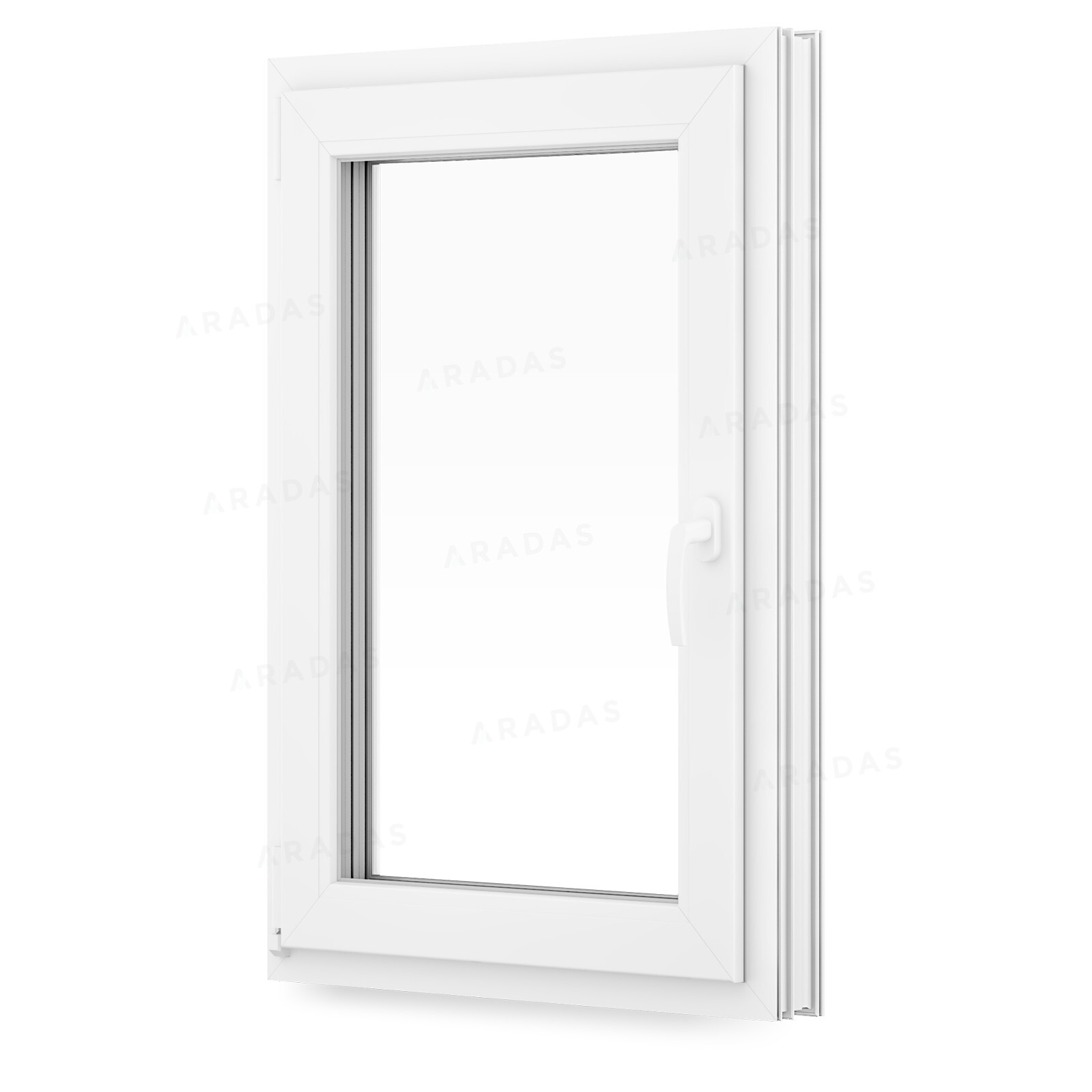

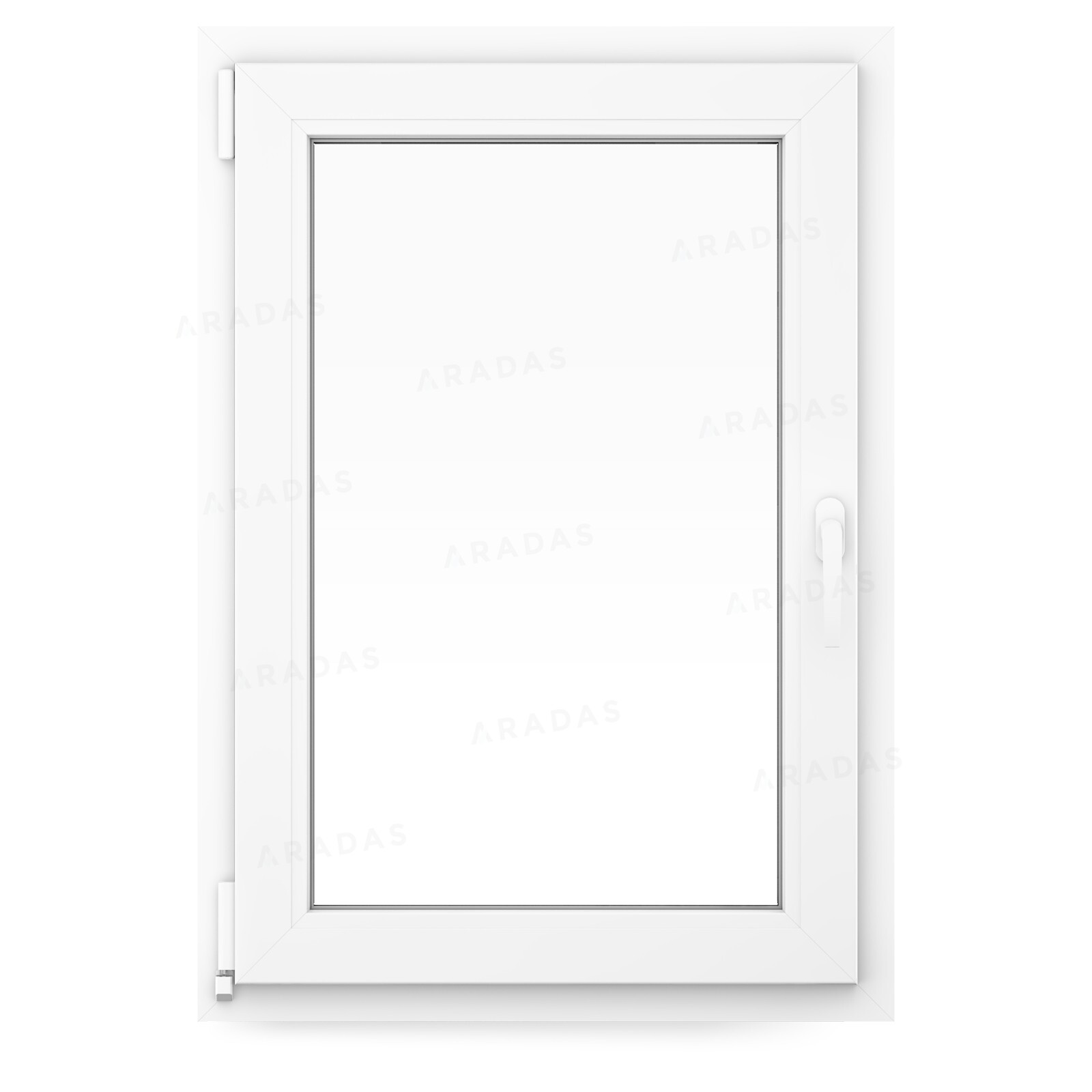

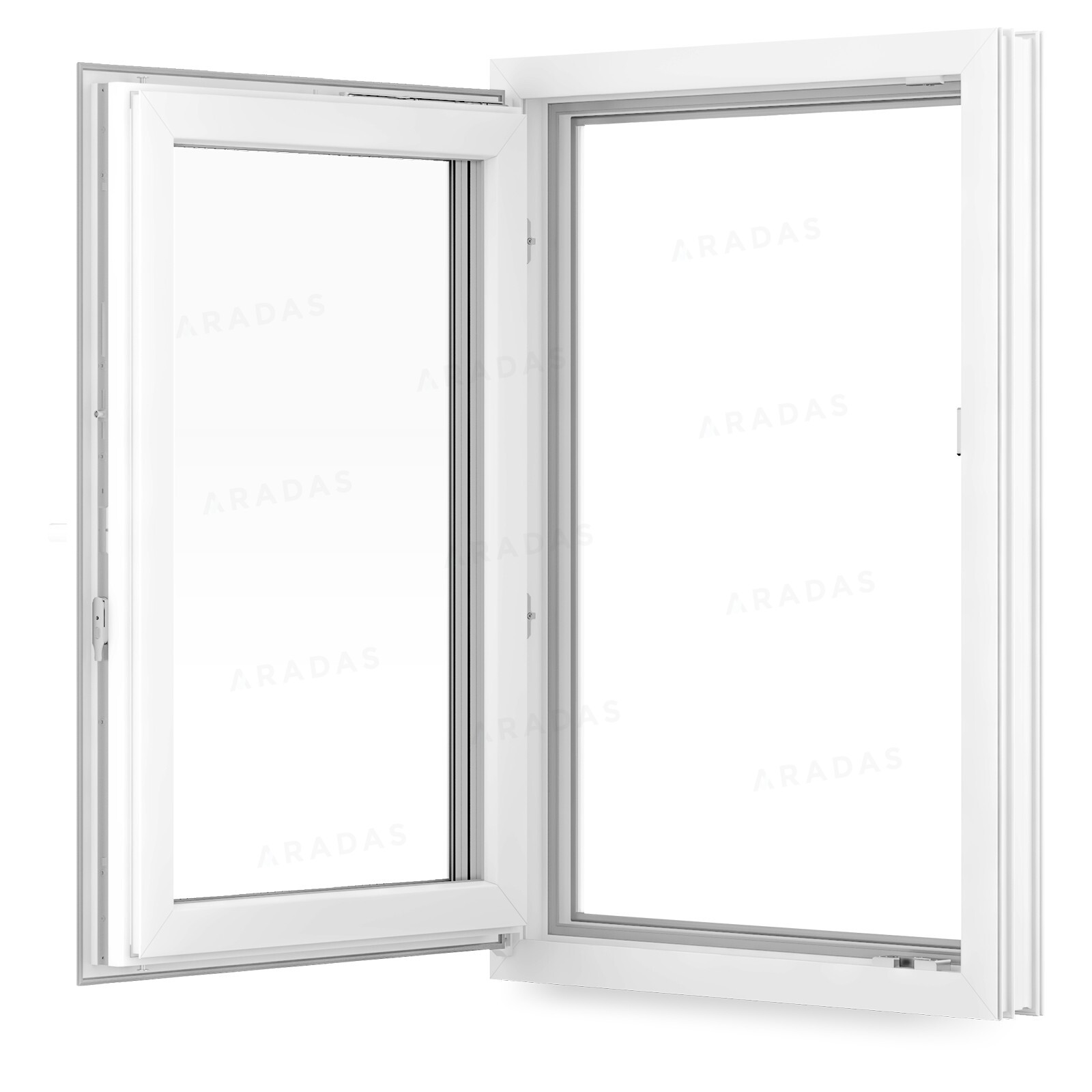

Our technologies and know-how allow to produce a window with secure top-venting hopper in the tilt position, an inward opening casement in the turn position.
There are several functional combinations: TurnTilt, Tilt before Turn, Tilt only, Turn only, Escape or combination windows (sashes with fixed frames).
Windows can be designed in various combinations, sizes and decorative partitions and all other individual features of the product may vary to fit your home design needs.

  • Specifications
  • Decorative bars
  • Profile colors
  • Glass
  • Accessories
  • Cross-section drawings

Specifications

SystemELBRO/Geneo, composite
FunctionInward opening
TurnTilt, Tilt before Turn, Turn only, Tilt only, Escape,  Combination windows (sashes with fixed frames)
Tech. specifications

Profile:

Depth: 86 mm
Height (frame+sash): 115/129 mm

Product:

Max height, white, visible/concealed hinges (frame 72): 2776/2718 mm
Max height, white, visible/concealed hinges (frame 86): 2804/2746 mm
Max height, laminated, visible/concealed hinges (frame 72): 2676 mm
Max height, laminated, visible/concealed hinges (frame 86): 2704 mm
Max width, white, visible/concealed hinges (frame 72): 1676/1516 mm
Max width, white, visible/concealed hinges (frame 86): 1704/1544 mm
Max width, laminated, visible/concealed hinges (frame 72): 1576/1516 mm
Max width, laminated, visible/concealed hinges (frame 86): 1604/1544 mm
Min height, visible/concealed hinges (frame 72): 398/479 mm****
Min height, visible/concealed hinges (frame 86): 426/507 mm****
Min width, visible/concealed hinges (frame 72): 408/448 mm****
Min width, visible/concealed hinges (frame 86): 436/476 mm****

Max window area, white/laminated (frame 72): 4,11/3,69 m2
Max window area, white/laminated (frame 86): 4,23/3,8 m2
Max sash weight (glass unit): 100 kg
Window weight, frame 72/86*: 67/66 kg

Arch forms, R-max (for sashes): 600 mm

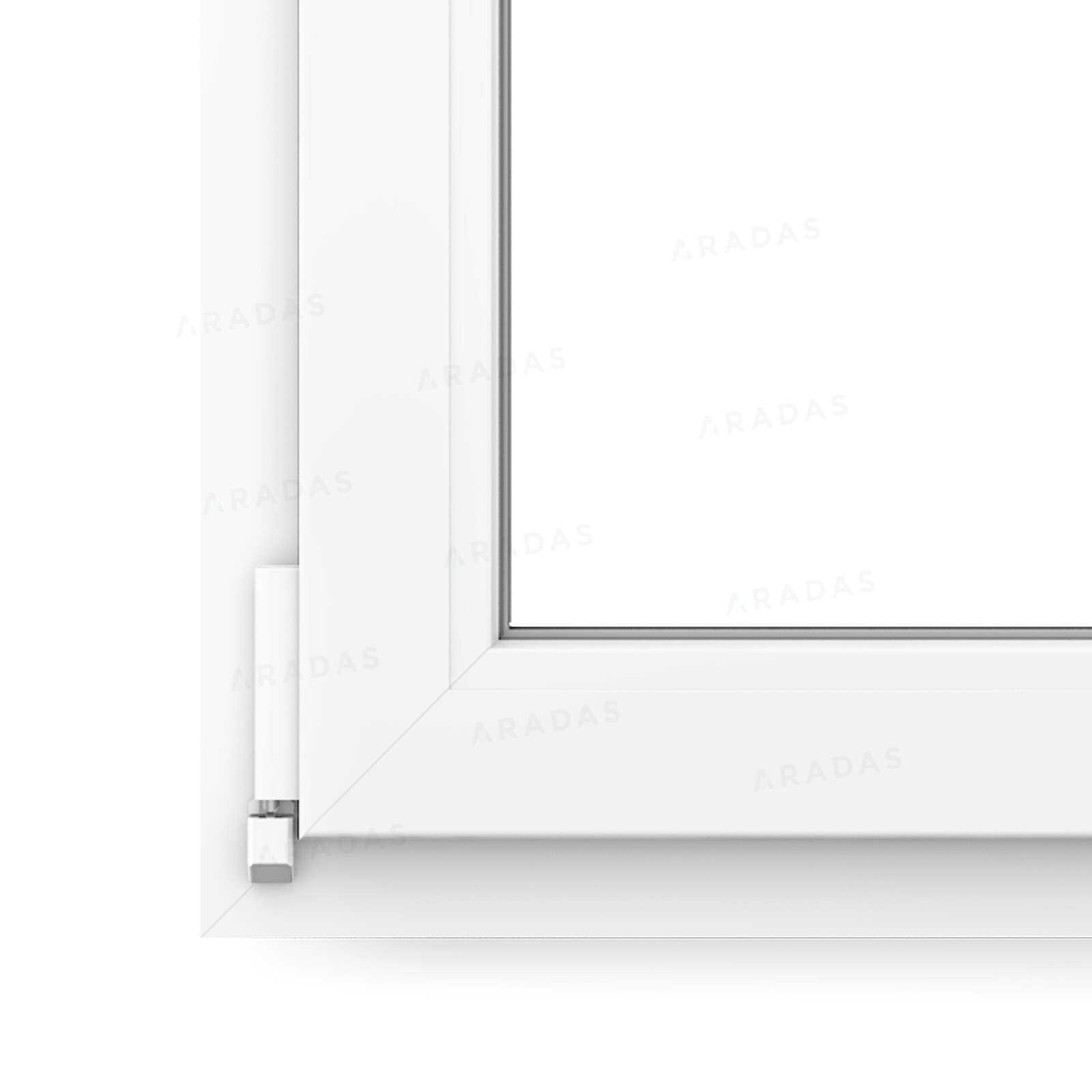

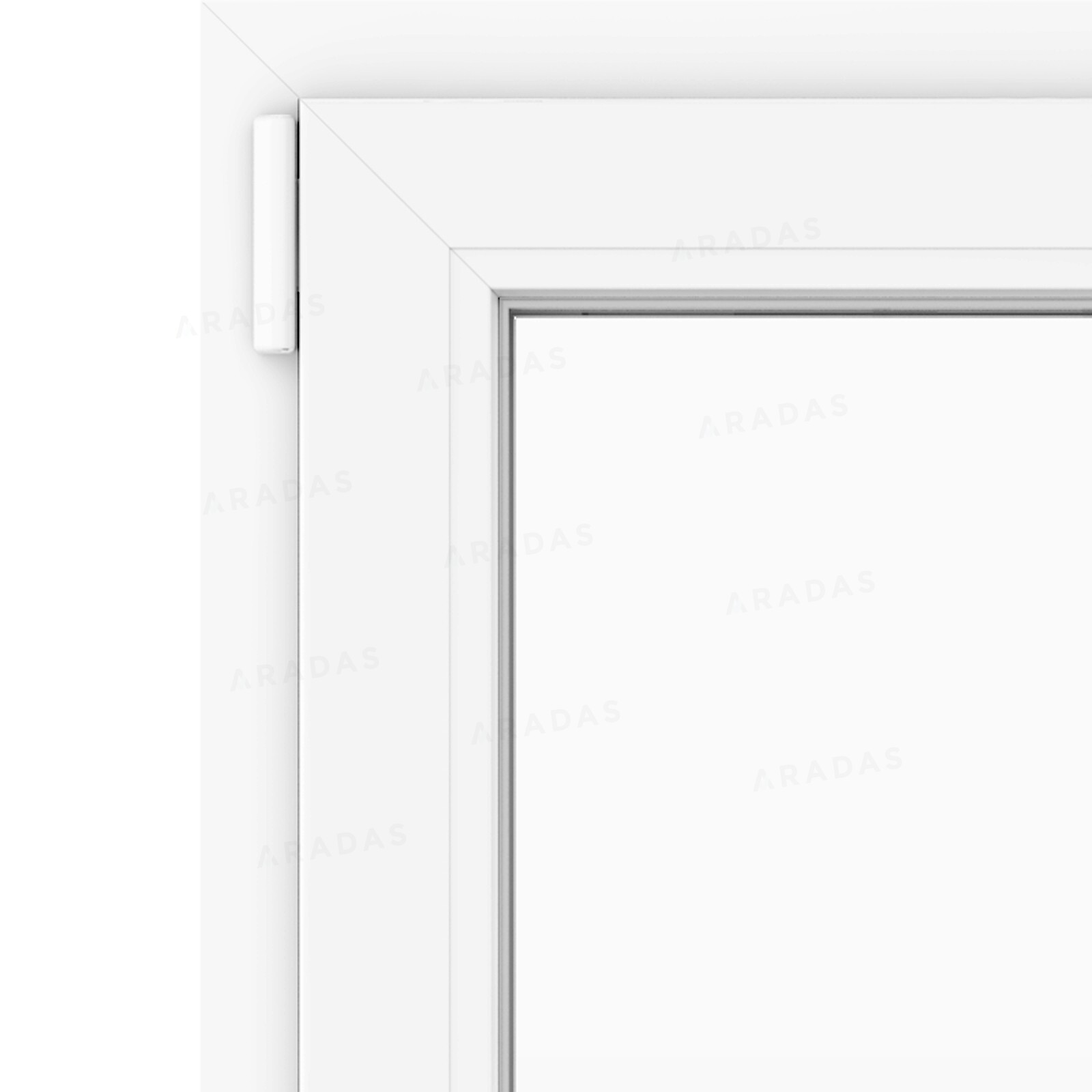

Visible or concealed hinges available

Installation:
screws, anchors or adjufix
milled groove (10×10 mm) or U profile as an option

RAU-FIPRO®
HDF®

3 gaskets
High quality locking hardware

PerformanceThermal insulation:*
Uw, 3-layer glass (frame 72/86): 0,74/0,76 W/m²K
Uw, 2-layer glass: 1,2 W/m²K
Sound control:**
Standard 3-layer glass unit: 33 dB
Standard 2-layer glass unit: 32 db
Special 3-layer glass unit: 47 dB
Special 2-layer glass unit: 46 dB
Tightness classes:
Water tightness (EN 12208): E900 (900 Pa)
Air pearmability (EN 12207): 4 (600 Pa)
Wind tightness (EN 12210): C5/B5 (2000 Pa)
Enhanced featuresOptions for glass units: decorative, special glasses
97 options for profile colours
Ventilation
Child protection hook-sash holder
Sash stopper in any position (operated by handle)
* – values are calculated with warm spacer, for reference window, 1230×1480 mm;
**- values for orientation only;
****Applies to white and laminated;HDF® -high definition finishing;
RAU-FIPRO® is high tech material with glass Fiber core and PVC coating.

Decorative bars

With a vast array of design, size, colour of decorative bars options available, your home can truly be as individual as you are.


Standard PVC bars
Glued on both sides
27/47/77mm
+Duplex
Download PDF

Classic PVC bars
Glued on both sides
22mm
+Duplex
Download PDF

Combined PVC bars
Glued on both sides:
Standard bars 27mm outside
Classic bars 22mm inside
+ Duplex
Download PDF

Standard PVC bars
Glued on both sides
27/47/77mm
Download PDF

Classic PVC bars
Glued on both sides
22mm
Download PDF

Combined PVC bars
Glued on both sides:
Standard bars 27mm outside
Classic bars 22mm inside
Download PDF

Bars inside the glass
18/26/45mm
Download PDF

Profile colors

Colour accuracy

Due to monitor differences, actual colors may vary slightly from what appears online. Contact us for color samples if you need help selecting a finish.

*similar to RAL color standard

  • 90+ colors to choose
  • Resistant to UV-rays
  • Higher protection from scratches
  • Grain or wooden surface textures
  • No standard colors
  • Different colors on inside and outside possible
  • Different colors on sash and frame possible

Glass

Insulated glass units

Insulated glass units play significant role achieving pleasant, comfortable indoors environment, high thermal properties and preventing heat loss. Our standard 2 -layers or high-performance 3-layers insulated glass units are produced with energy-saving low-emissivity (Low-E) selective coating and filled with argon gas. Warm edge spacer bars between glass layers significantly reduce conductivity (compared to alu) and uplift the overall U-value of a window. Depending on the purpose, insulated glass units can have additional characteristics: safety & security, solar or sound control and etc.

Below, our special glasses range. Contact us for more information.

Safety & security glass units

Safe and secure insulated glass units can be tempered, laminated or combine both characteristics in one. It provides protection against the risk of injuries due to accidental breakage and serves for protection of property from vandalism to burglary. Several options are available depending on required level of safety/security.

Solar control glass units

Solar control glass units reflect and filter the sun’s rays, protect all the interior surfaces from fading at same time allowing natural daylight into the room without uncomfortable visual glare. If you are worried about overheating where the glass is under direct or frequent sun exposure, then the insulated solar control glass units is your choice.

Sound control glass units

In order to avoid annoying traffic noise we recommend to choose insulated sound control glass units with increased noise reduction level. We offer a broad range of special glasses depending on desired acoustic level.

 Glass controls noise by:

  • Reflecting the noise back towards the source,
  • Absorbing the noise within the glass.

Self-cleaning glass units

Self-cleaning glass with special coating is the ideal solution for higher floor buildings with limited cleaning access. The glass uses the natural daylight and the rainwater to break down organic dirt. It also dries quicker and tends not to leave as many streaks, or traces of water. As long as you have daylight and rain, it’s nearly maintenance free.

Anti-fog glass units

The occurrence of external condensation can be a problem, especially in spring and autumn on high thermal insulated windows or doors. Anti-fog glass units significantly reduce the amount of external condensation and make your living space more comfortable while ensuring a clear view through the window.

Decorative glass units

Decorative glass units with timeless textured patterns enhance style and design for your windows and doors. It
is an elegant way to create privacy to certain areas.



Decorative glass



Sun control glass



*Glass visuals are for guidance only and may slightly differ from the originals.

Accessories

Handles

*under the request.

Air-ventilation

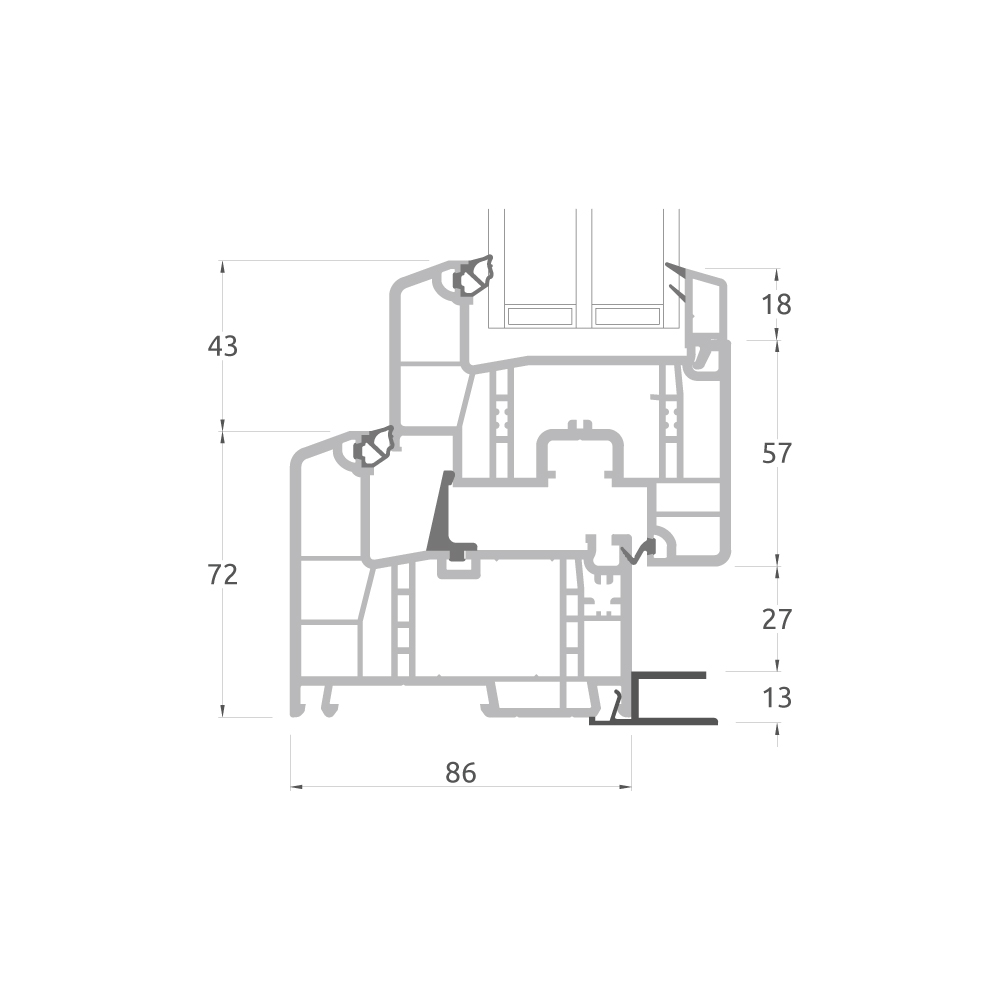

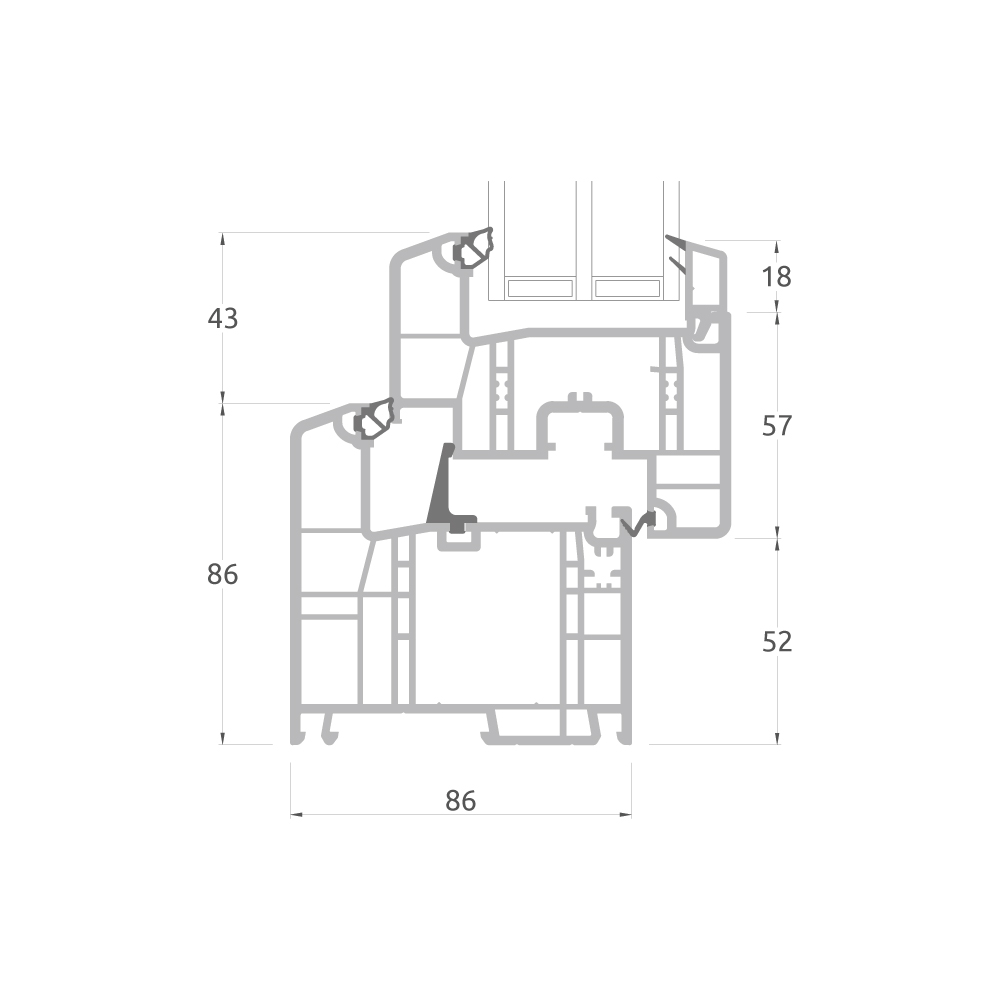

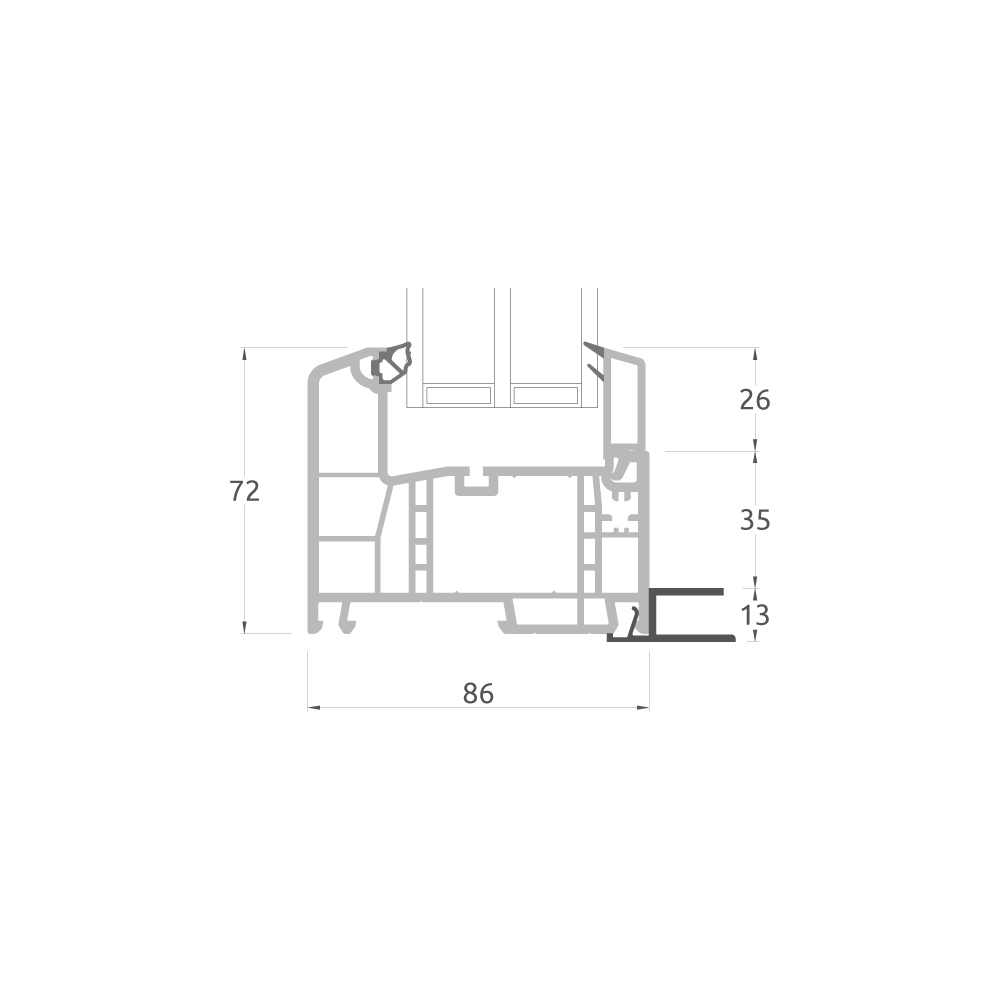

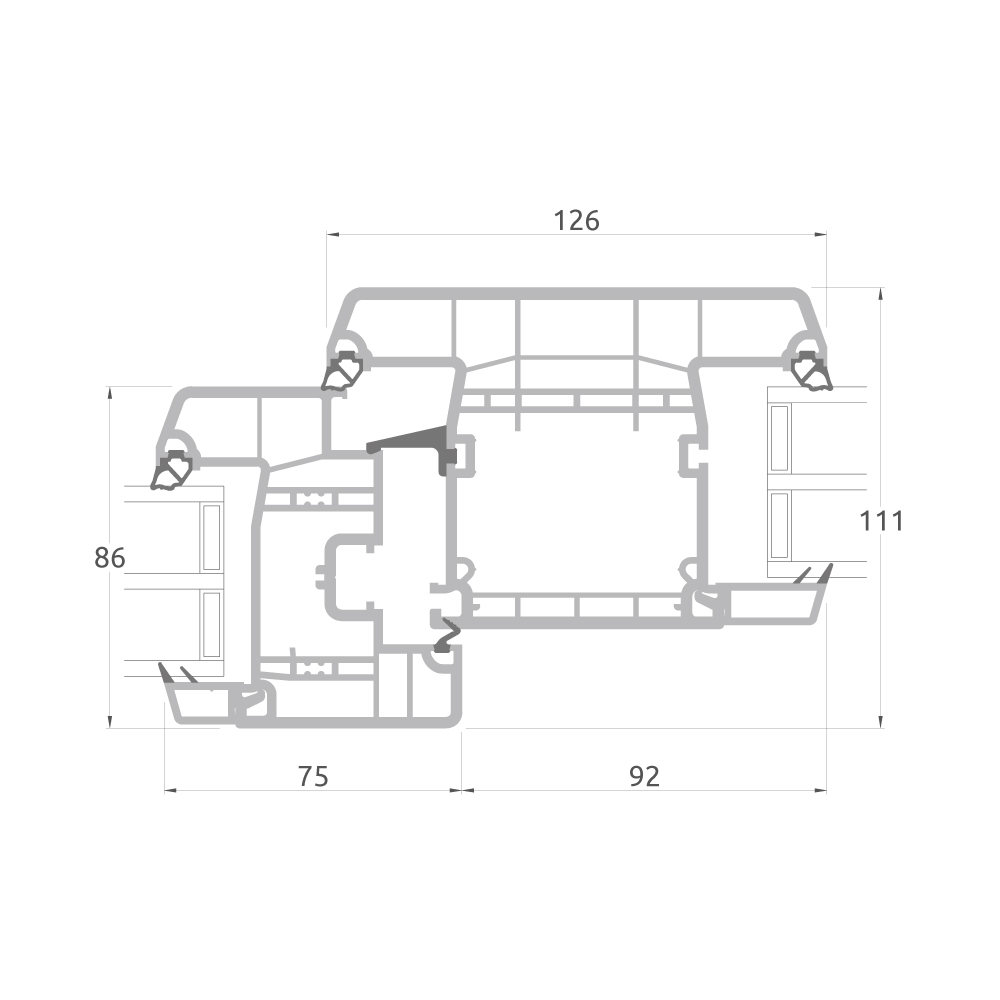

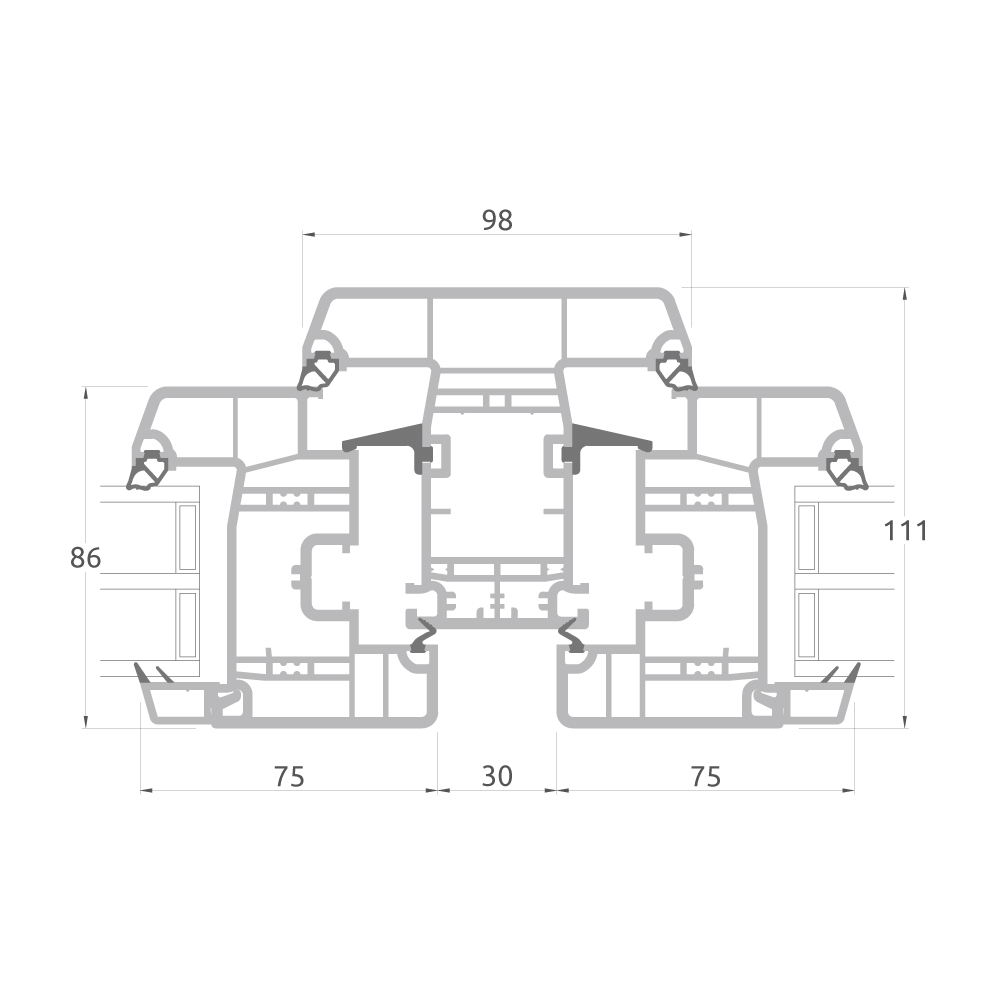

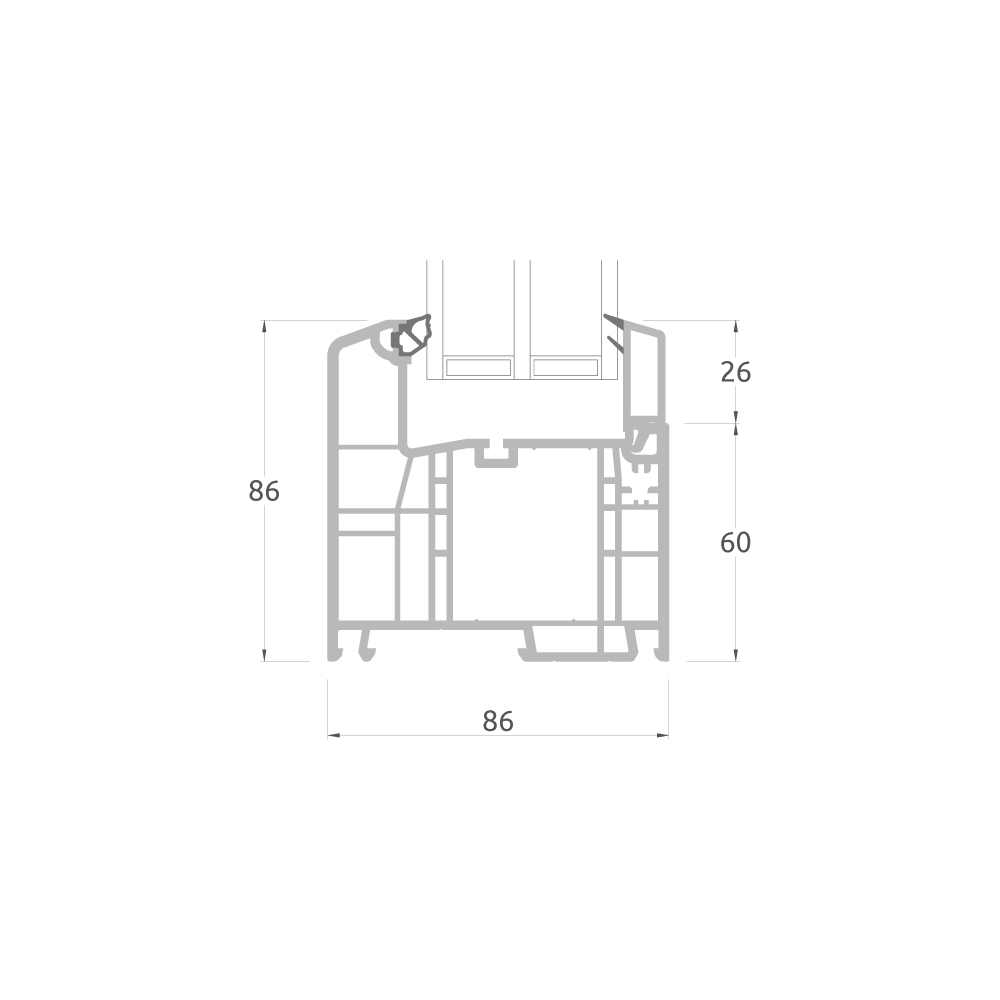

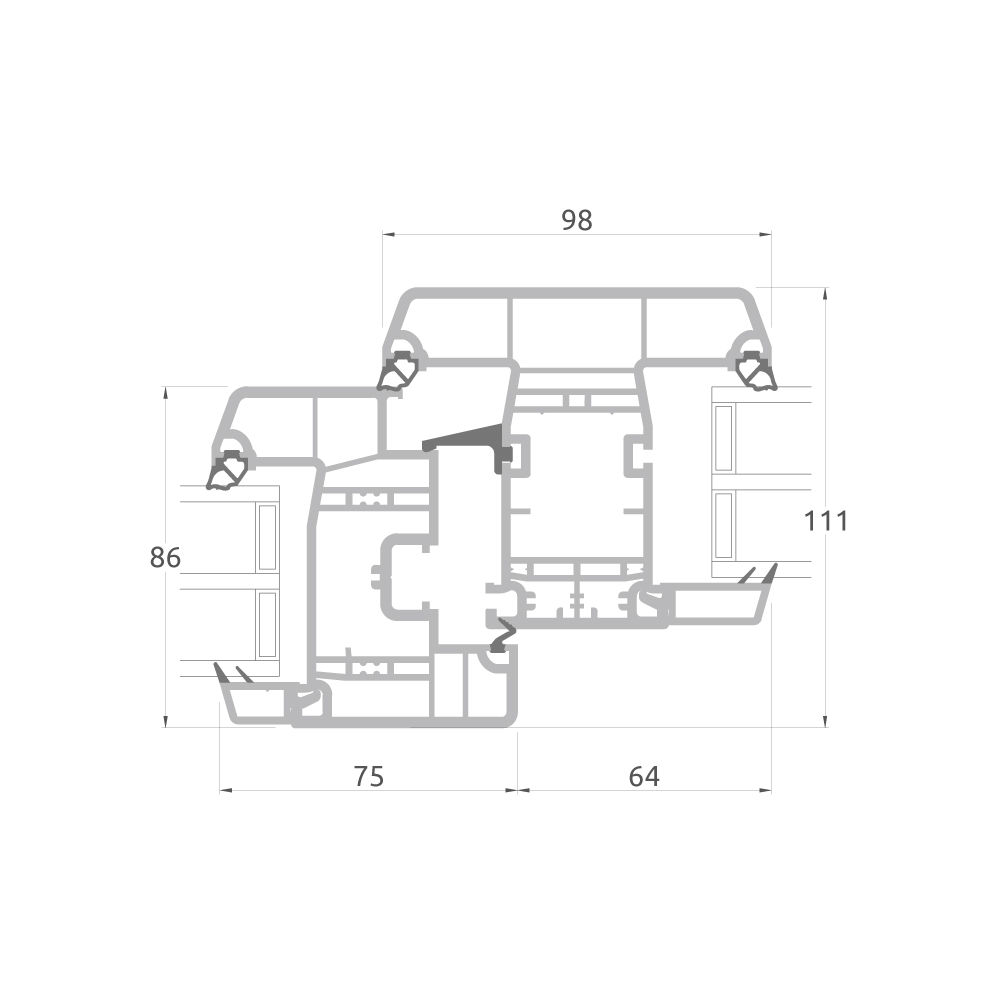

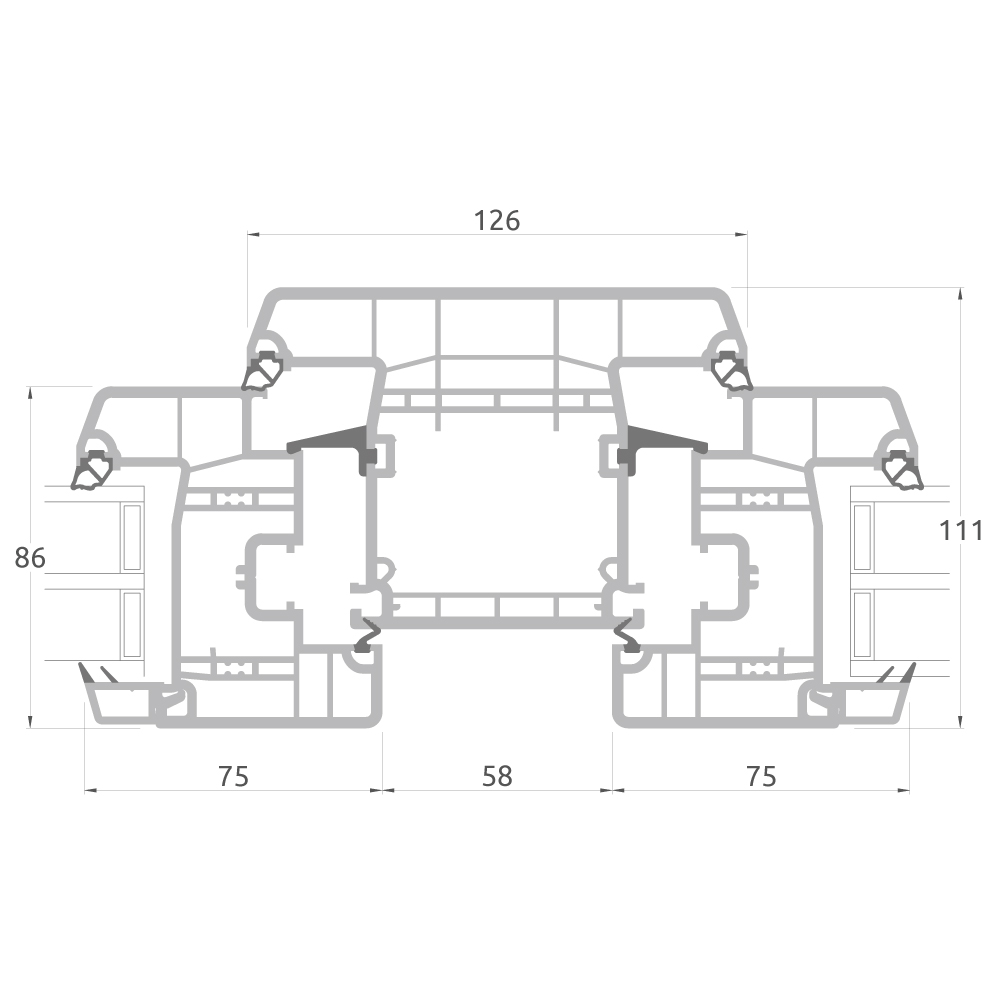

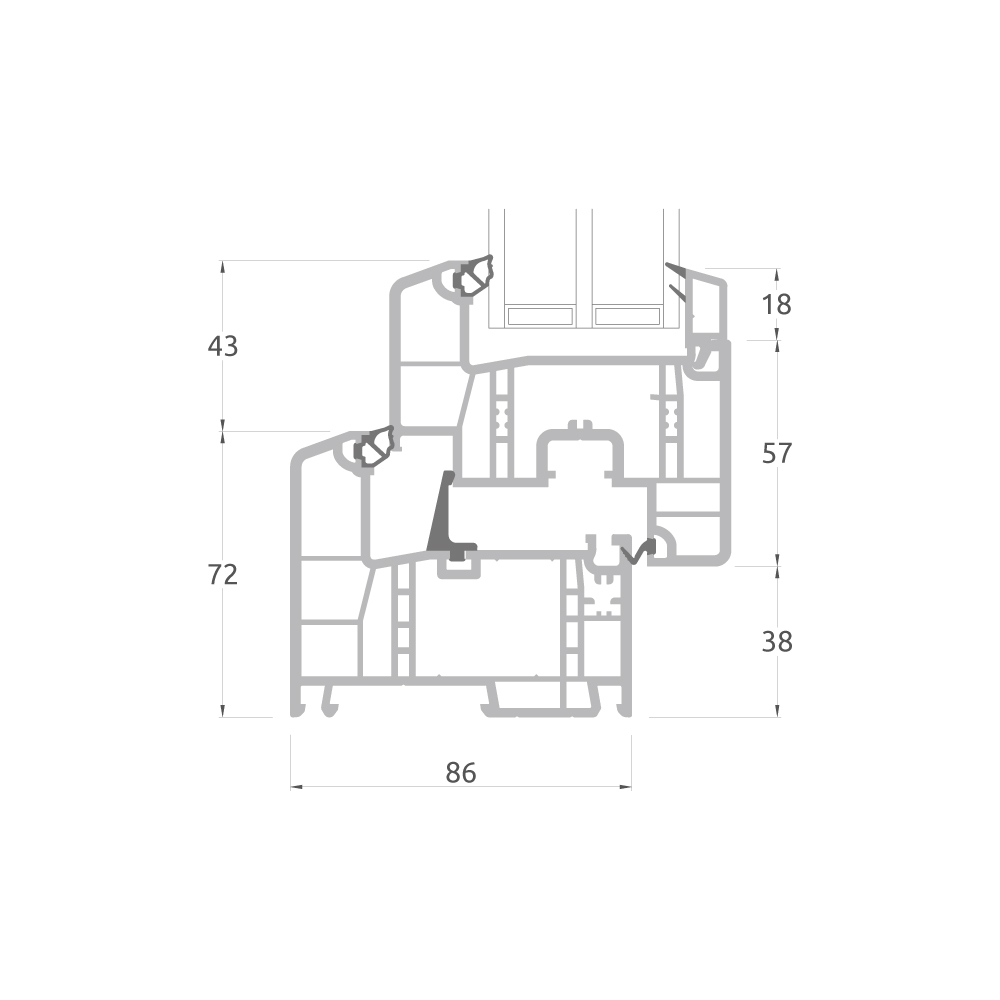

Cross-section drawings
