PVCDoorsINWARD/OUTWARD OPENING ENTRANCE DOOR | ALPO NL / Synego NL

PVCUw valueHigh definition finishing

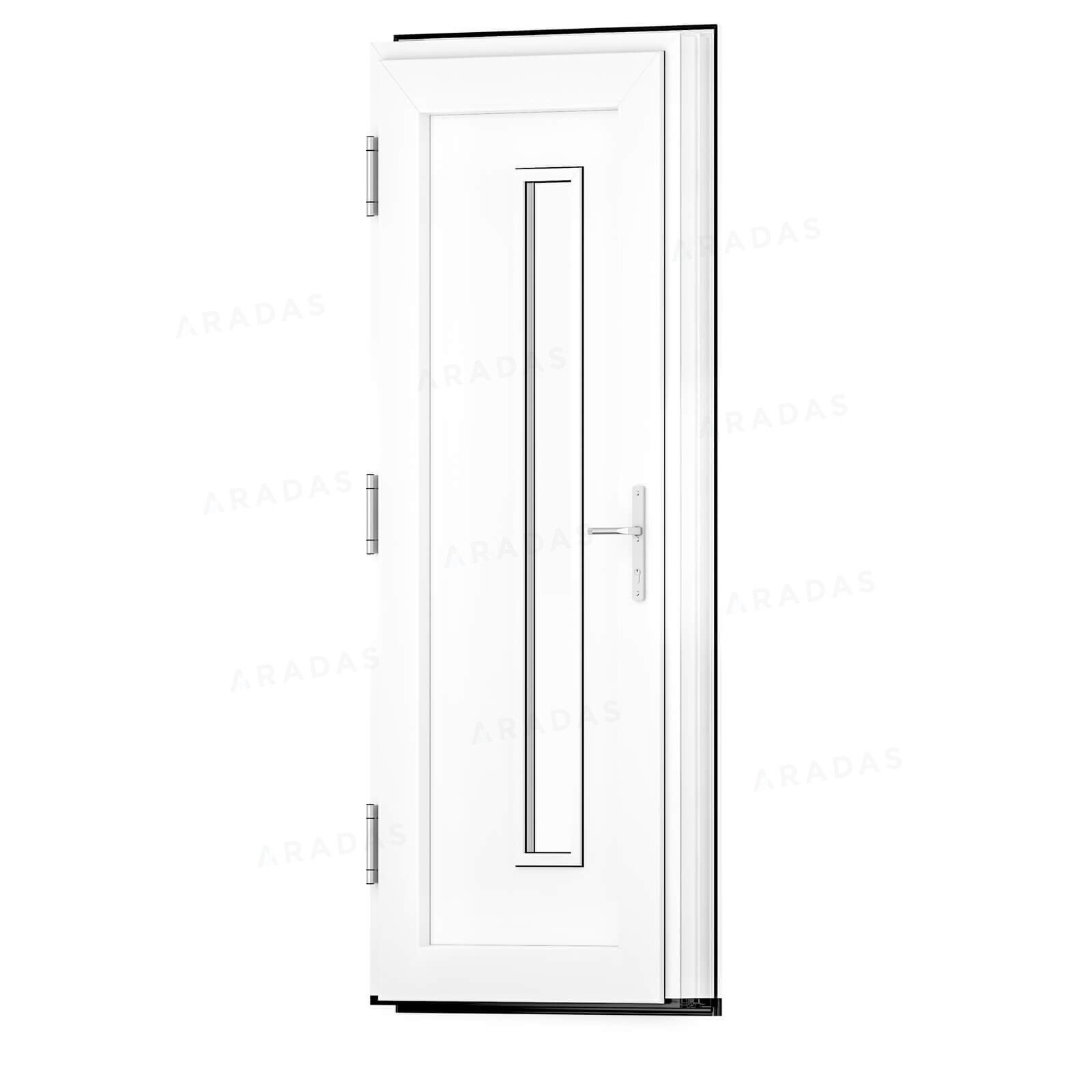

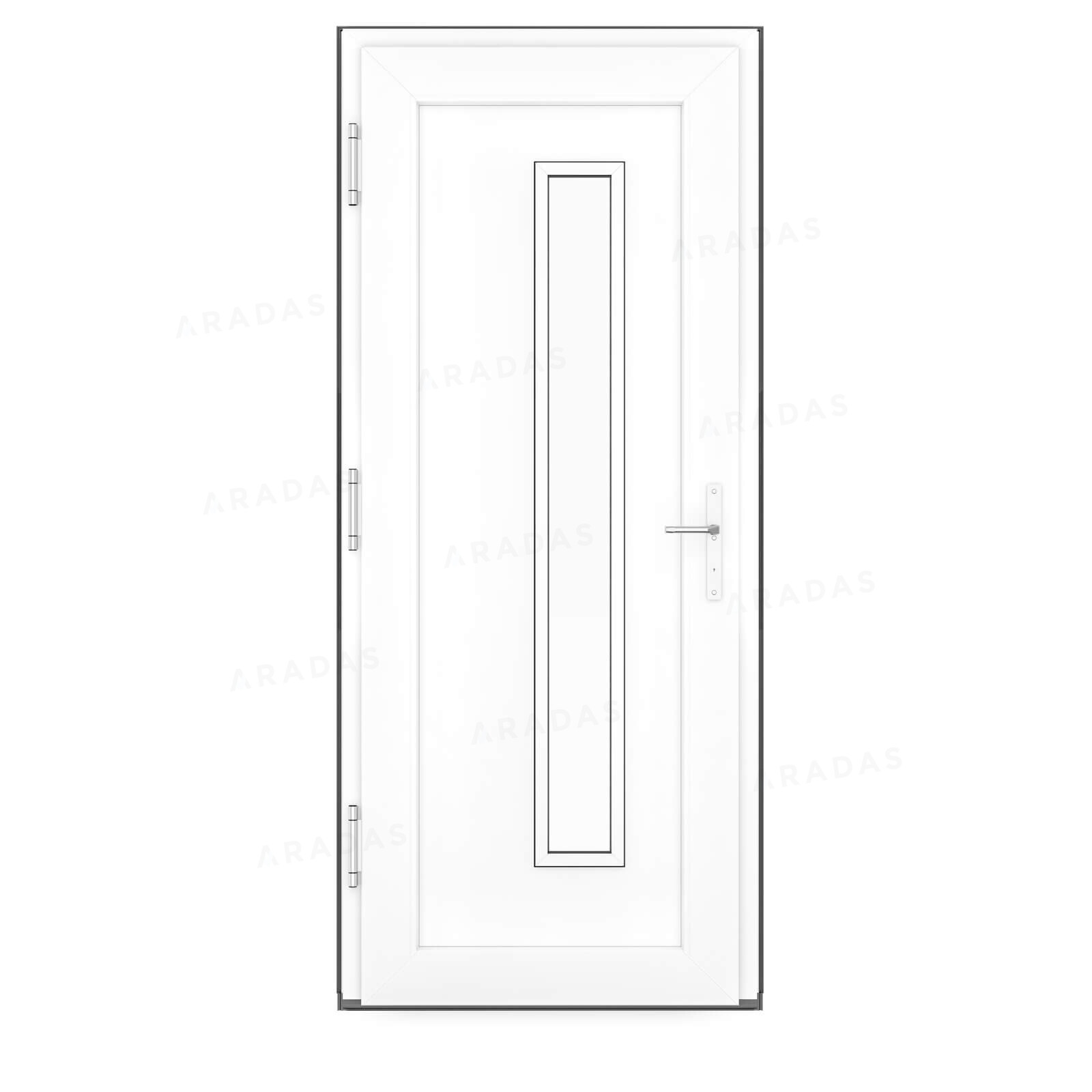

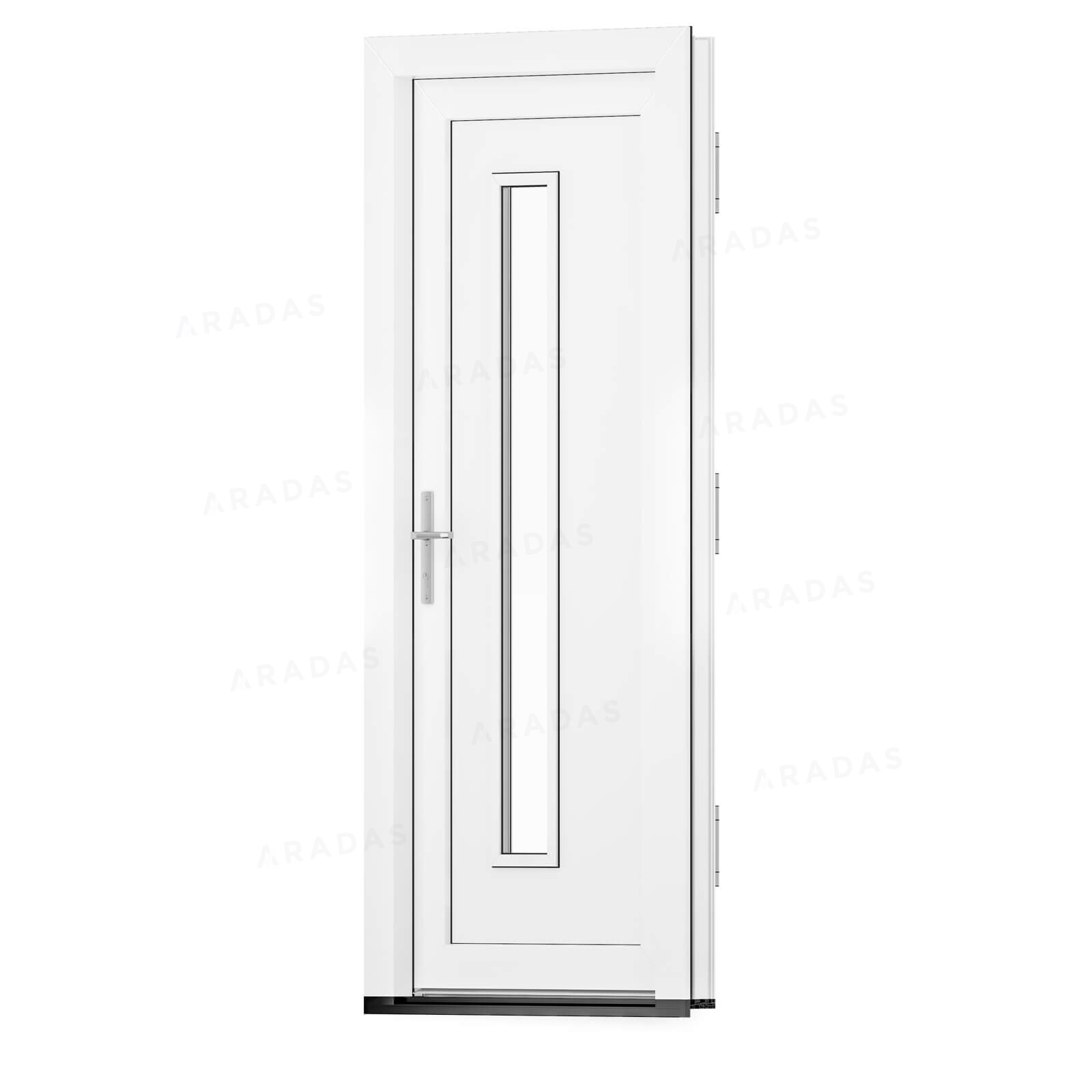

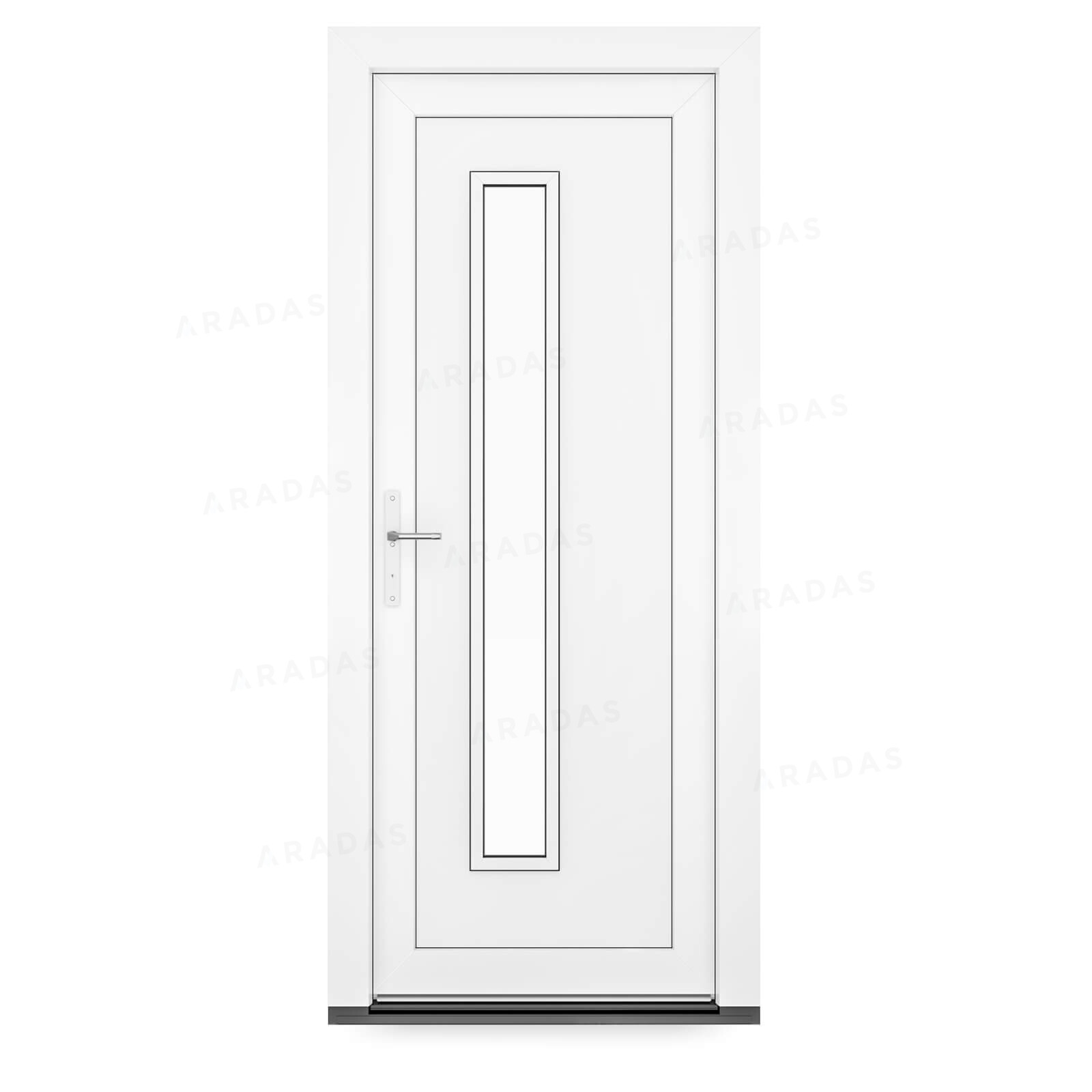

COMPLETELY RECYCLABLE, ENERGY-EFFICIENT PVC DOOR FOR RENOVATION PROJECTS TO ENHANCE OLD BUILDINGS WITH NEW CONTEMPORARY FEATURES

Our technologies and know-how allow to have a door with secure inward or outward opening casement.
Entrance doors available with extended range of Aluminium thresholds heights: 20 mm, 30 mm amd 55 mm.
Frames designed in 6 or 16 degrees, with or without external nailing fins that ease overall works of finishing after installation. Depending on building requirements nailing fins are possible to attach or pre-extruded in the frame.
Doors can be designed in various combinations, sizes, decorative partitions. All other individual features of the product may vary to fit your home design needs.

  • Specifications
  • Decorative bars
  • Profile colors
  • Glass
  • Accessories
  • Cross-section drawings

Specifications

System

ALPO NL/Synego NL, PVC

Function Inward or Outward opening Entrance door
Tech. specifications Profile: Depth: 120 mm Height without/with nailing fin (frame+sash): 166/184 mm ALU threshold heights: 20; 30; 55 mm Product:*** Max height: 2436 mm Max width: 1216 mm Min height: 1876 mm Min width: 550 mm Max door area: 2,96 m2 Max sash weight (glass unit): 80 kg Profile body color: standard white RAL9016 or cream white RAL9010 Gaskets color: black Hinges: ROTO PS 23 or Dr.Hahn (inward opening doors) Roto Solid S 117H (outward opening doors) Installation: screws, adjufix U-profile as an option HDF®
Performance Thermal insulation:* Uw, 3-layer glass: 1,1 W/m²K Uw, 2-layer glass: 1,2 W/m²K Sound control:** Standard 3-layer glass unit: 34 dB Standard 2-layer glass unit: 33 dB Special 3-layer glass unit: 42 dB Special 2-layer glass unit: NPD Tightness classes (inward opening): Water tightness (EN 12208): 4A Air permeability (EN 12207): 2 Wind tightness (EN 12210): B2/C2 Tightness classes (outward opening): Water tightness (EN 12208): 7B Air permeability (EN 12207): 3 Wind tightness (EN 12210): B2/C22 gaskets High quality locking hardware
Enhanced features Options for glass units: decorative, special glasses Options for design fillings 95 options for profile colours Options for handles and locks
* – values are calculated with warm spacer, for reference window, 1230×1480 mm; **- values for orientation only; ***-applies on white or laminated; HDF® -high definition finishing.

Decorative bars

With a vast array of design, size, colour of decorative bars options available, your home can truly be as individual as you are.
Standard PVC bars Glued on both sides 27/47/77mm +Duplex Download PDF
Classic PVC bars Glued on both sides 22mm +Duplex Download PDF
Combined PVC bars Glued on both sides: Standard bars 27mm outside Classic bars 22mm inside + Duplex Download PDF
Standard PVC bars Glued on both sides 27/47/77mm Download PDF
Classic PVC bars Glued on both sides 22mm Download PDF
Combined PVC bars Glued on both sides: Standard bars 27mm outside Classic bars 22mm inside Download PDF
Bars inside the glass 18/26/45mm Download PDF

Profile colors

Colour accuracy

Due to monitor differences, actual colors may vary slightly from what appears online. Contact us for color samples if you need help selecting a finish.

*similar to RAL color standard

  • 90+ colors to choose
  • Resistant to UV-rays
  • Higher protection from scratches
  • Grain or wooden surface textures
  • No standard colors
  • Different colors on inside and outside possible
  • Different colors on sash and frame possible

Glass

Insulated glass units

Insulated glass units play significant role achieving pleasant, comfortable indoors environment, high thermal properties and preventing heat loss. Our standard 2 -layers or high-performance 3-layers insulated glass units are produced with energy-saving low-emissivity (Low-E) selective coating and filled with argon gas. Warm edge spacer bars between glass layers significantly reduce conductivity (compared to alu) and uplift the overall U-value of a window. Depending on the purpose, insulated glass units can have additional characteristics: safety & security, solar or sound control and etc. Below, our special glasses range. Contact us for more information.

Safety & security glass units

Safe and secure insulated glass units can be tempered, laminated or combine both characteristics in one. It provides protection against the risk of injuries due to accidental breakage and serves for protection of property from vandalism to burglary. Several options are available depending on required level of safety/security.

Solar control glass units

Solar control glass units reflect and filter the sun’s rays, protect all the interior surfaces from fading at same time allowing natural daylight into the room without uncomfortable visual glare. If you are worried about overheating where the glass is under direct or frequent sun exposure, then the insulated solar control glass units is your choice.

Sound control glass units

In order to avoid annoying traffic noise we recommend to choose insulated sound control glass units with increased noise reduction level. We offer a broad range of special glasses depending on desired acoustic level. Glass controls noise by:
  • Reflecting the noise back towards the source,
  • Absorbing the noise within the glass.

Self-cleaning glass units

Self-cleaning glass with special coating is the ideal solution for higher floor buildings with limited cleaning access. The glass uses the natural daylight and the rainwater to break down organic dirt. It also dries quicker and tends not to leave as many streaks, or traces of water. As long as you have daylight and rain, it’s nearly maintenance free.

Anti-fog glass units

The occurrence of external condensation can be a problem, especially in spring and autumn on high thermal insulated windows or doors. Anti-fog glass units significantly reduce the amount of external condensation and make your living space more comfortable while ensuring a clear view through the window.

Decorative glass units

Decorative glass units with timeless textured patterns enhance style and design for your windows and doors. It is an elegant way to create privacy to certain areas.

Decorative glass

Sun control glass

*Glass visuals are for guidance only and may slightly differ from the originals.

Accessories

Handles

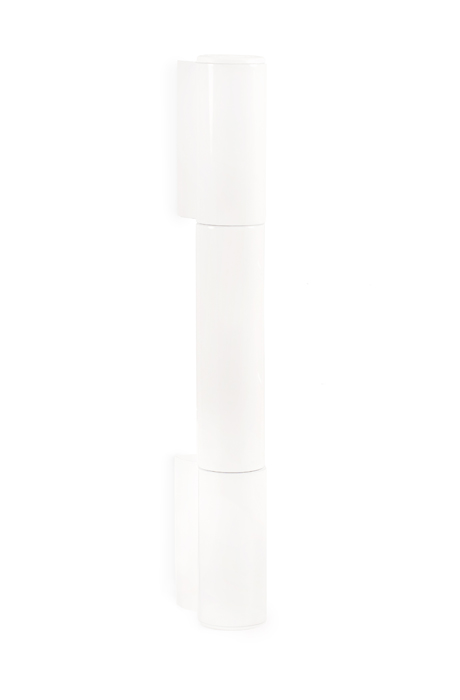

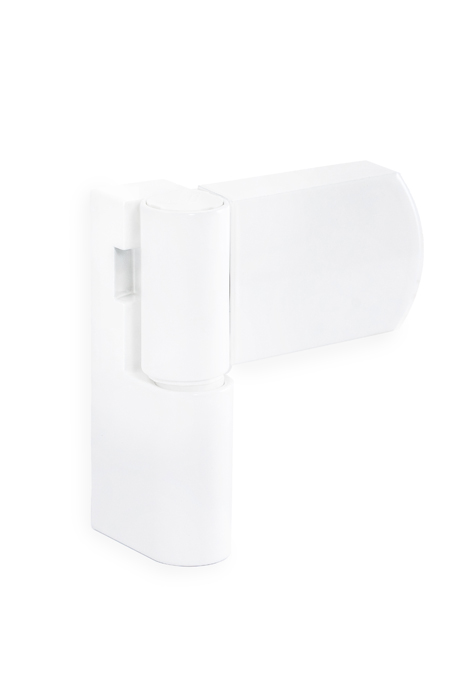

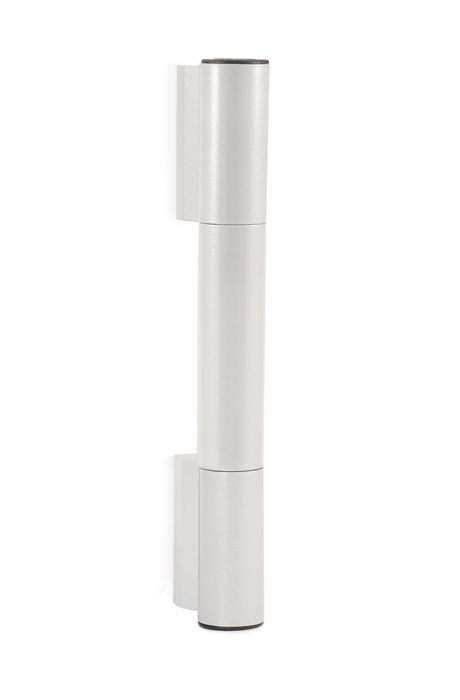

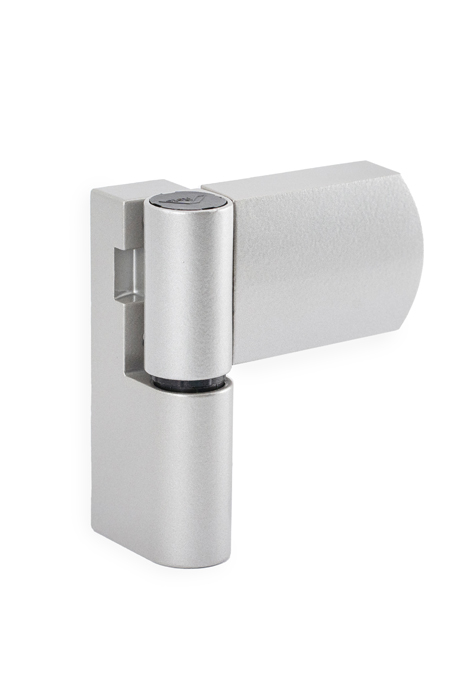

Hinges (inward opening doors)

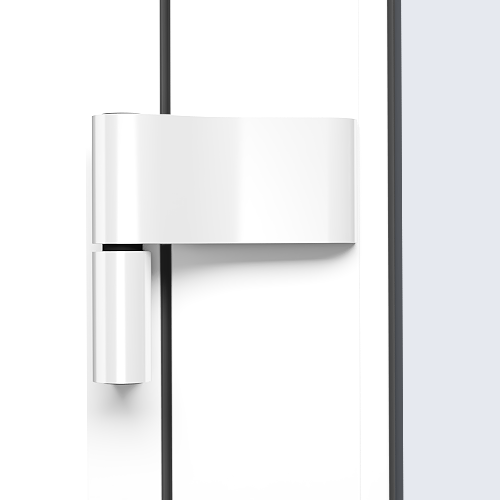

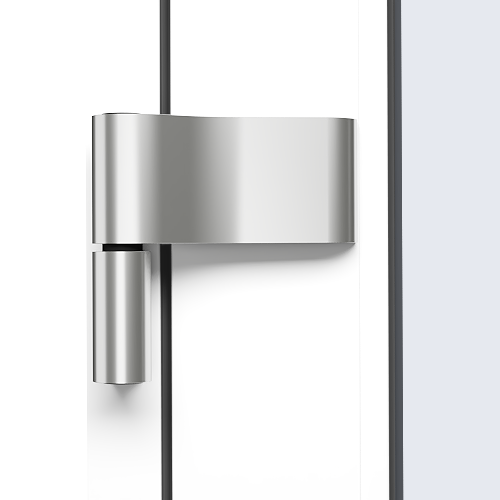

Hinges (outward opening doors)

Door closers

Other

*Under the request

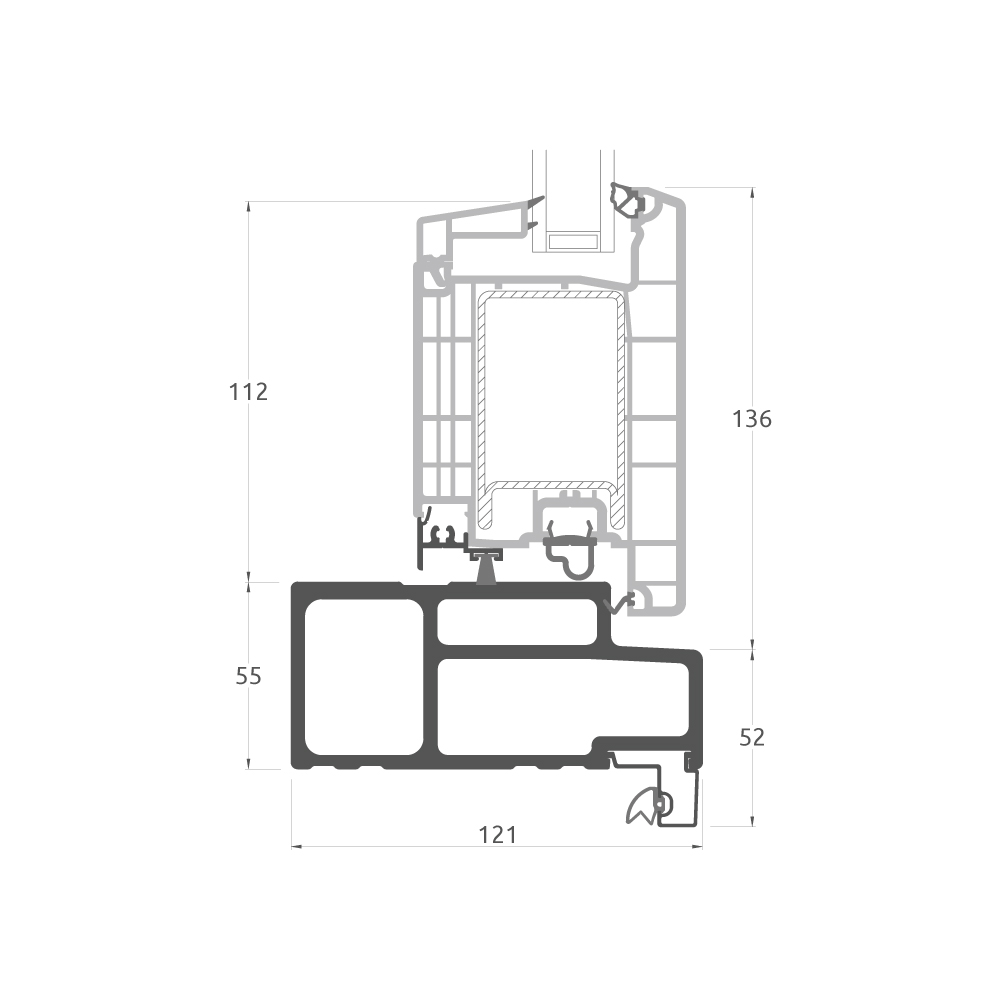

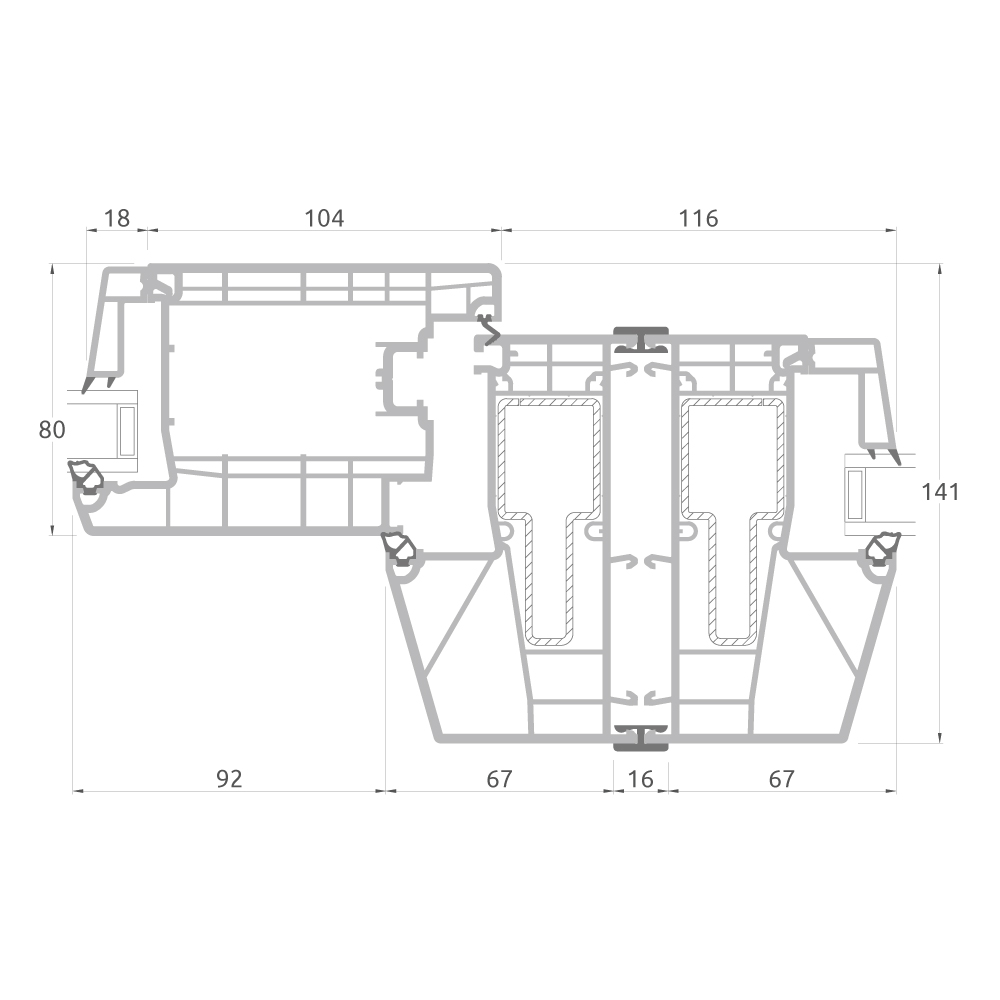

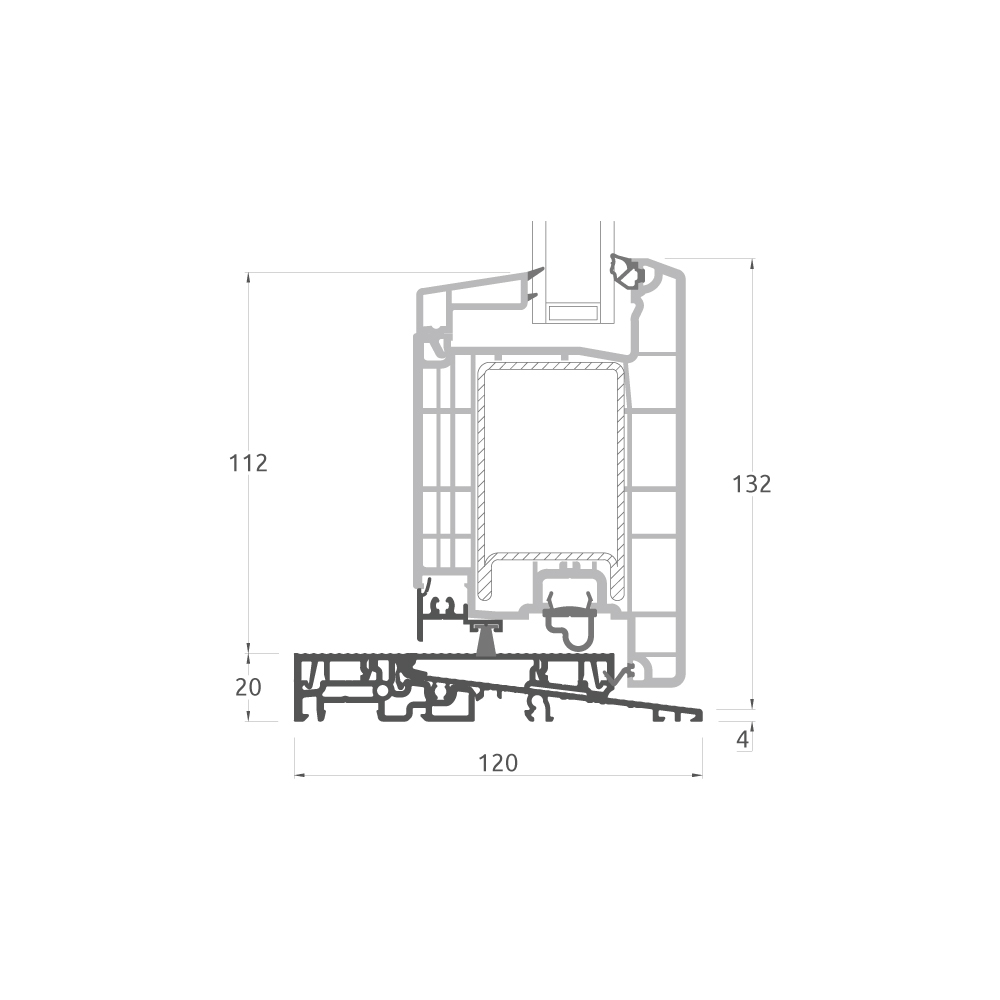

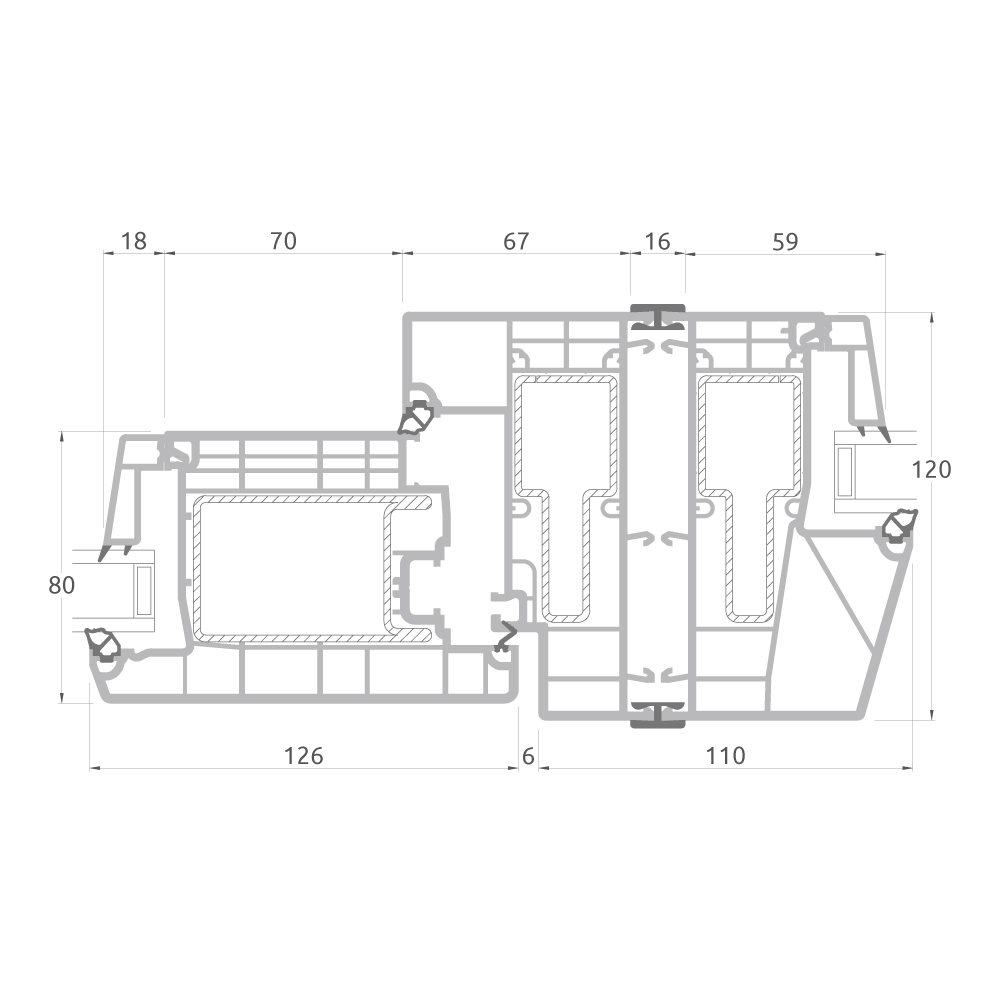

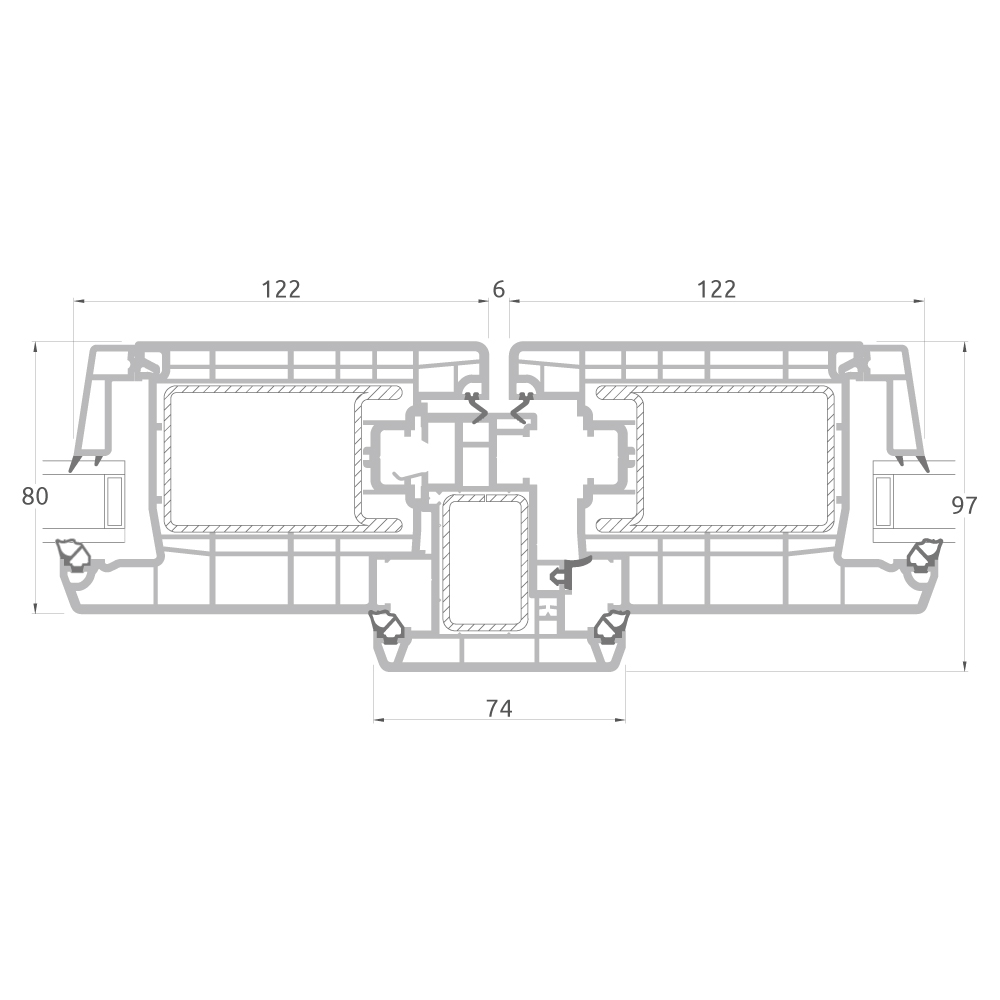

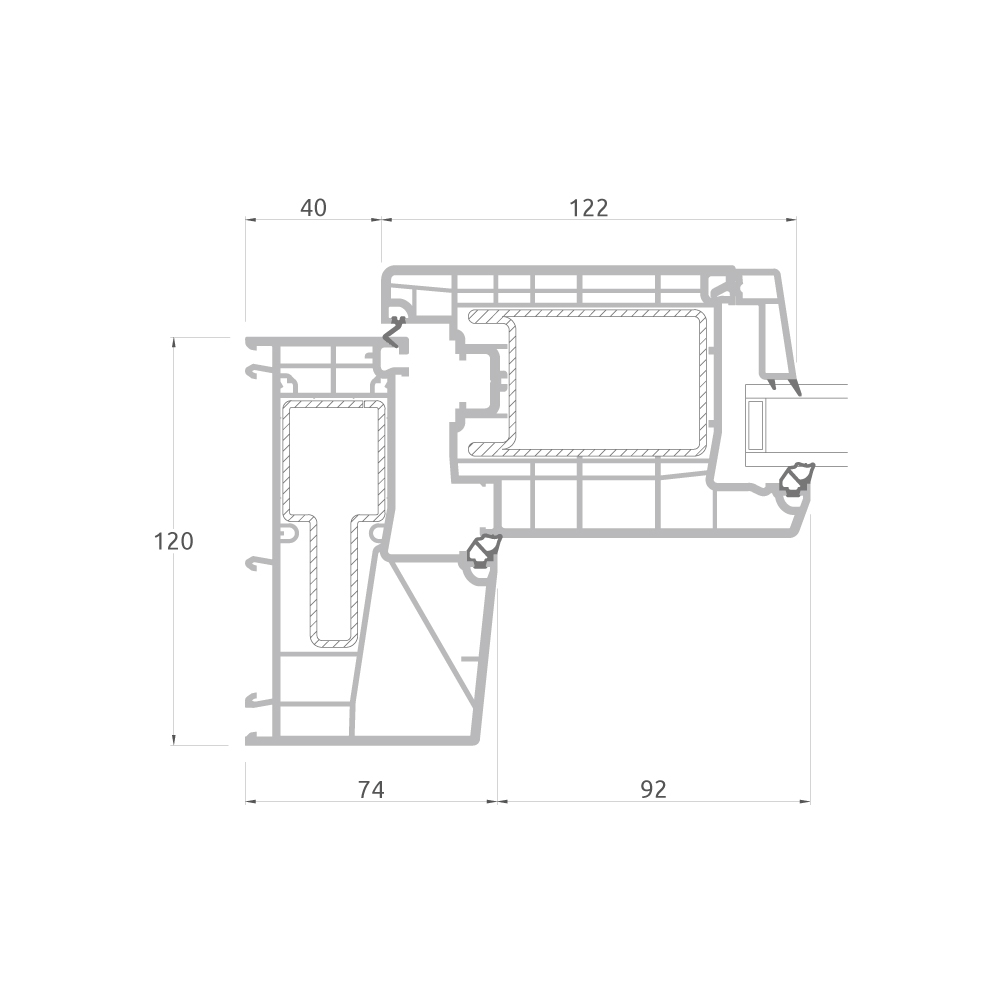

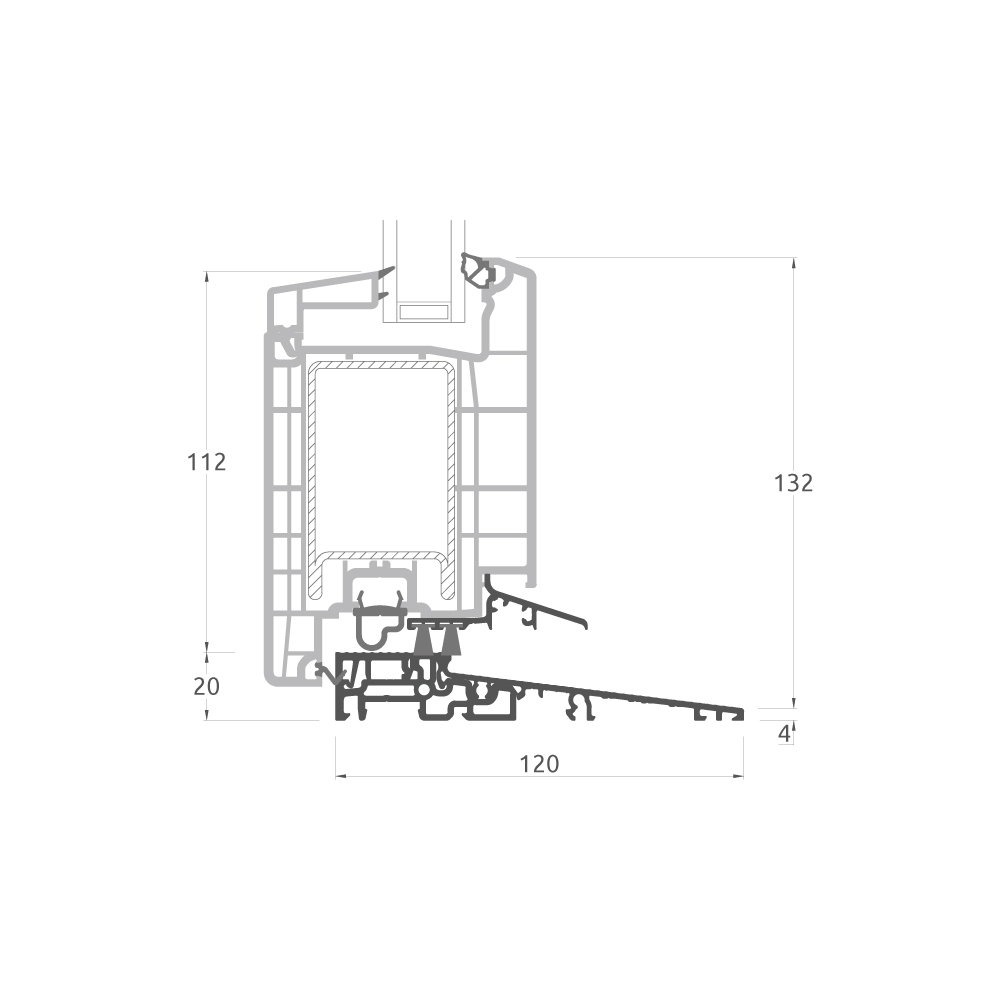

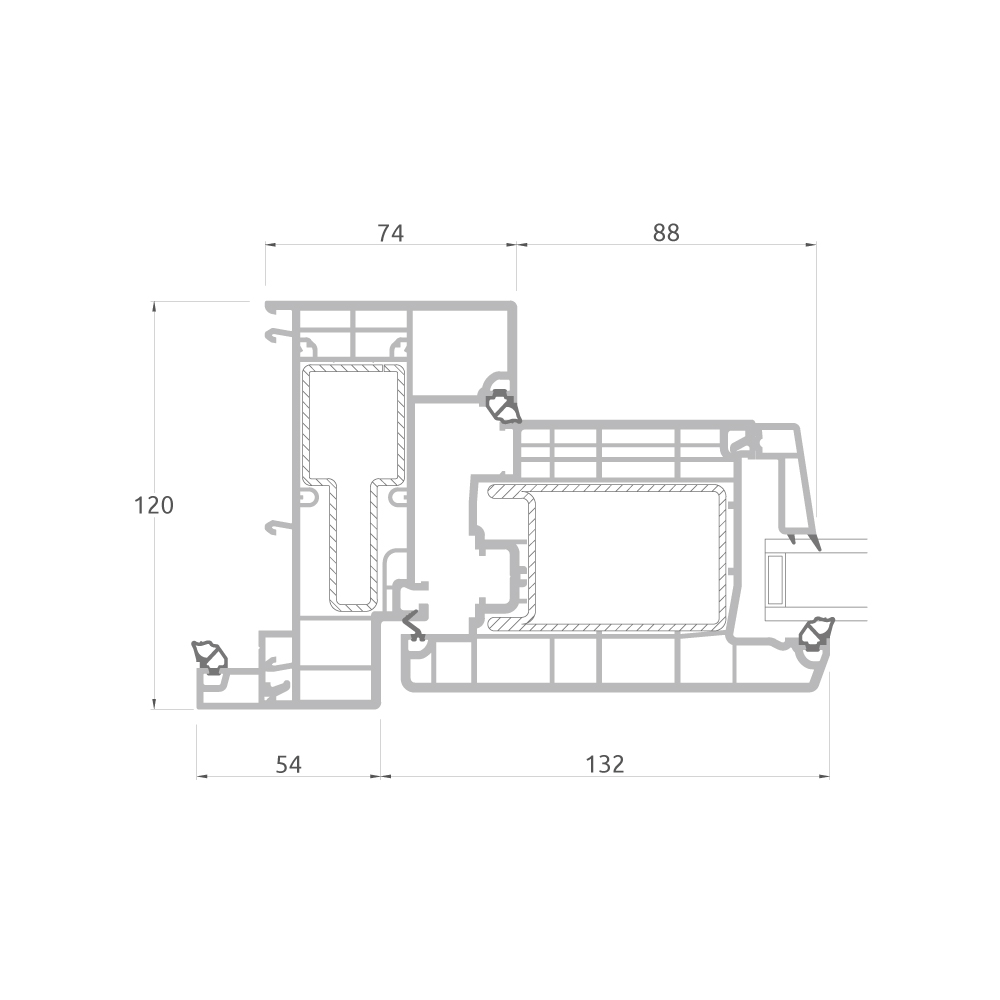

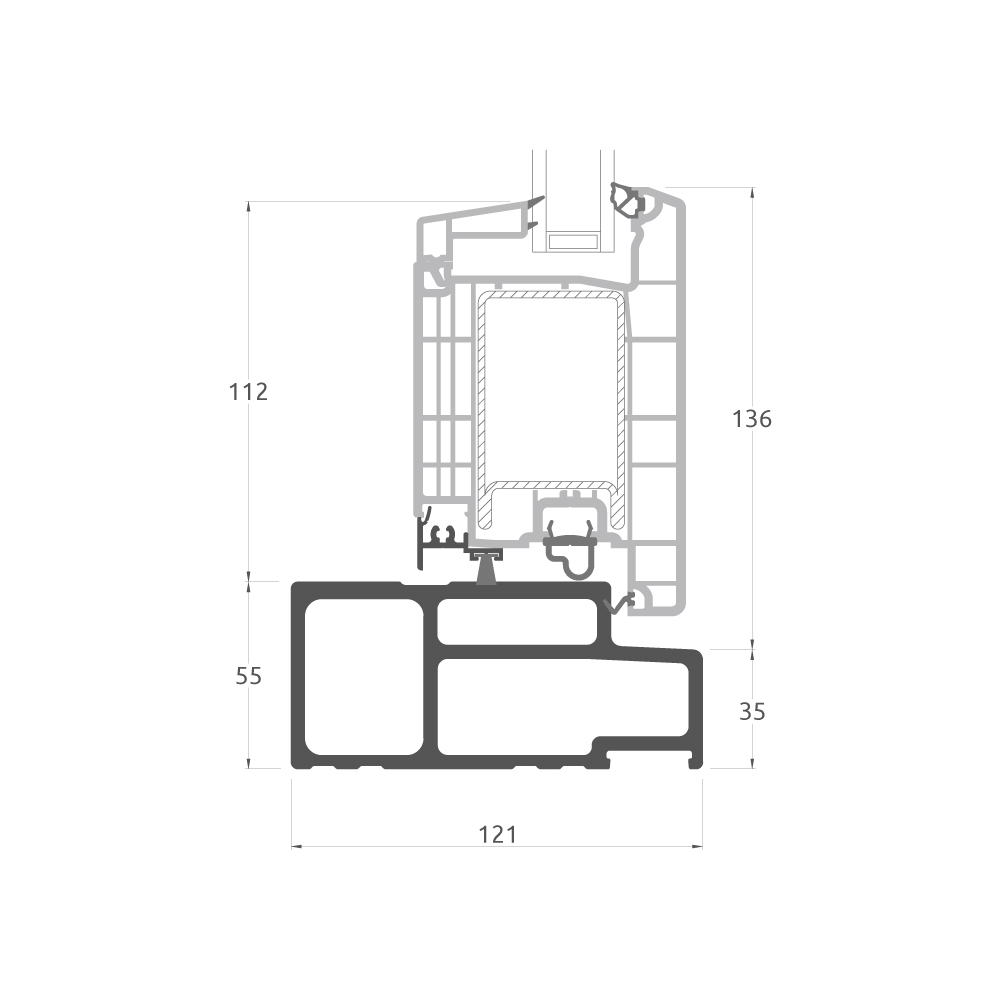

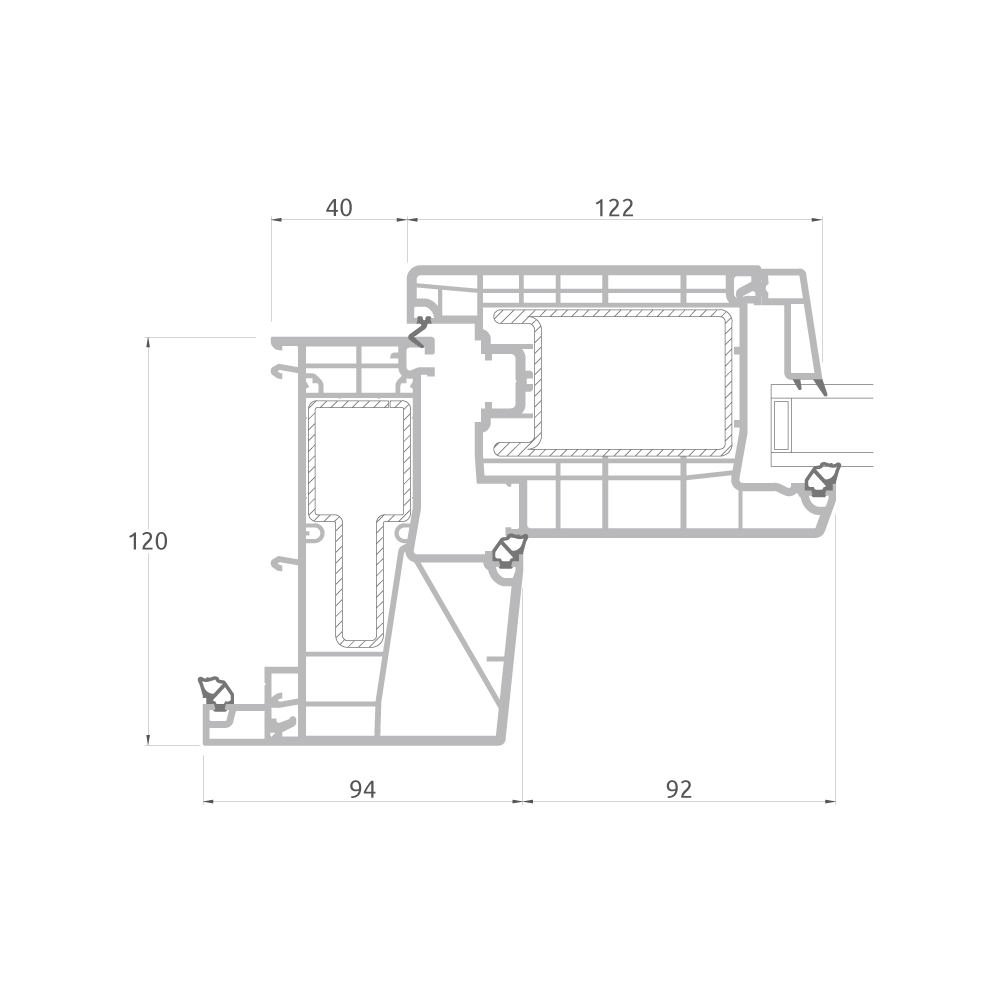

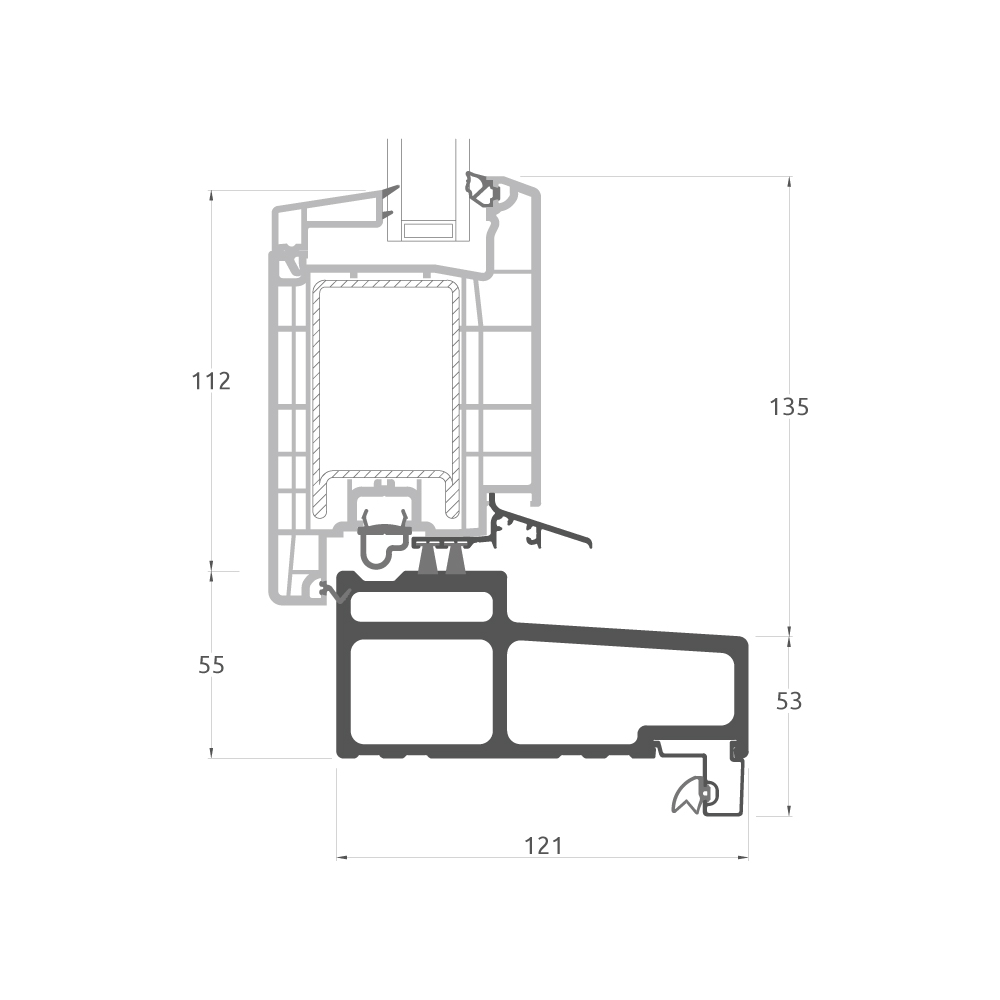

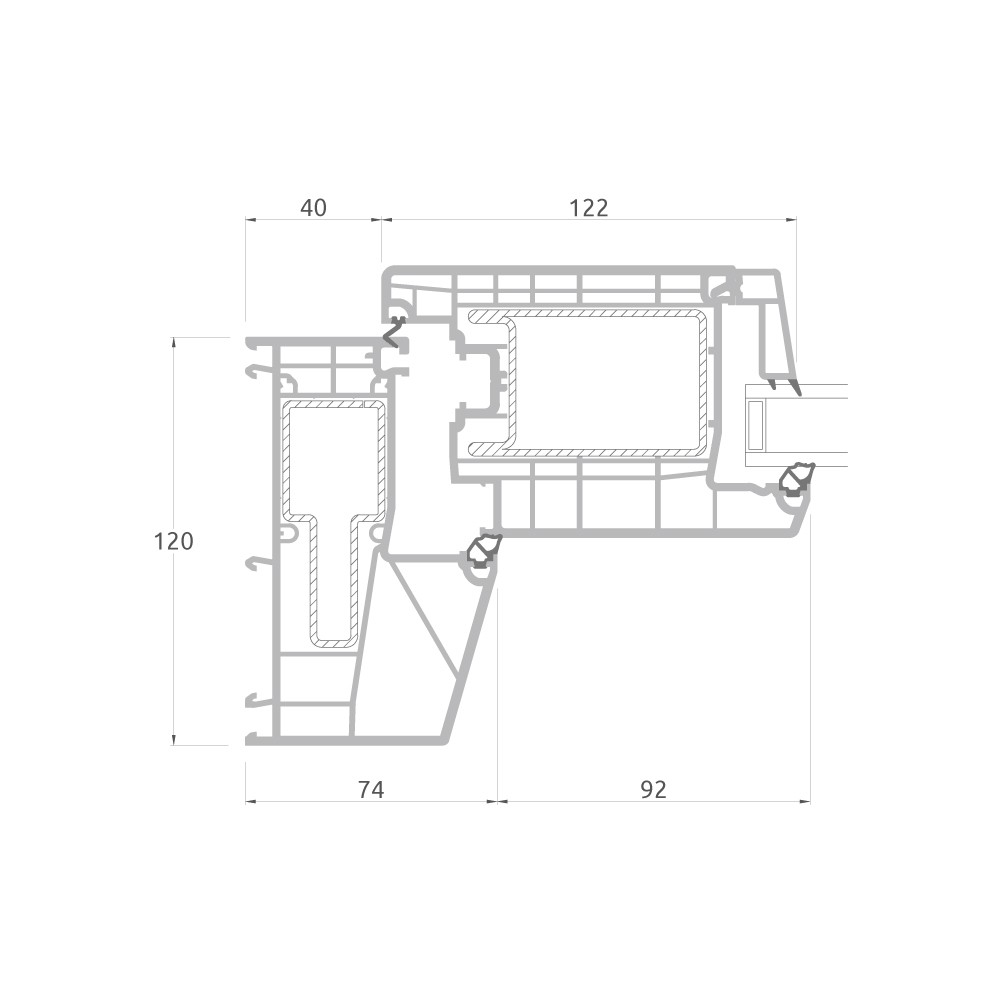

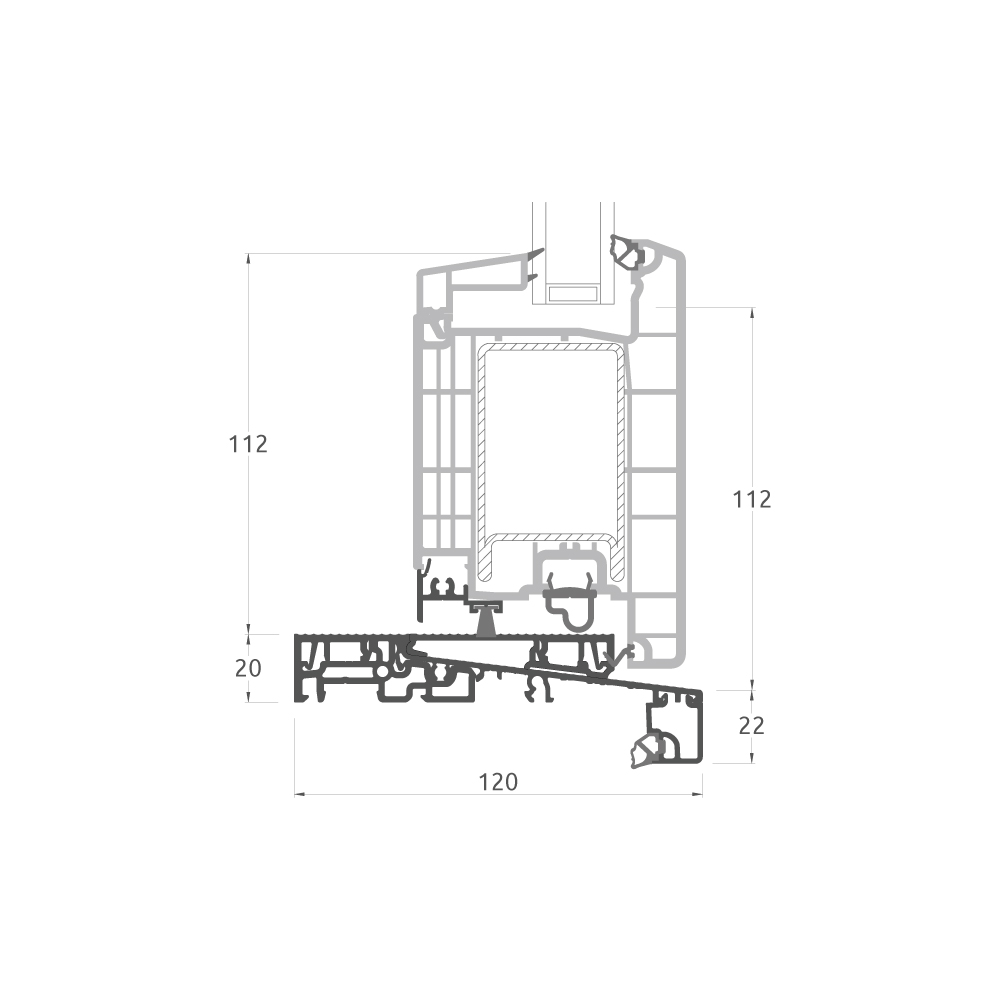

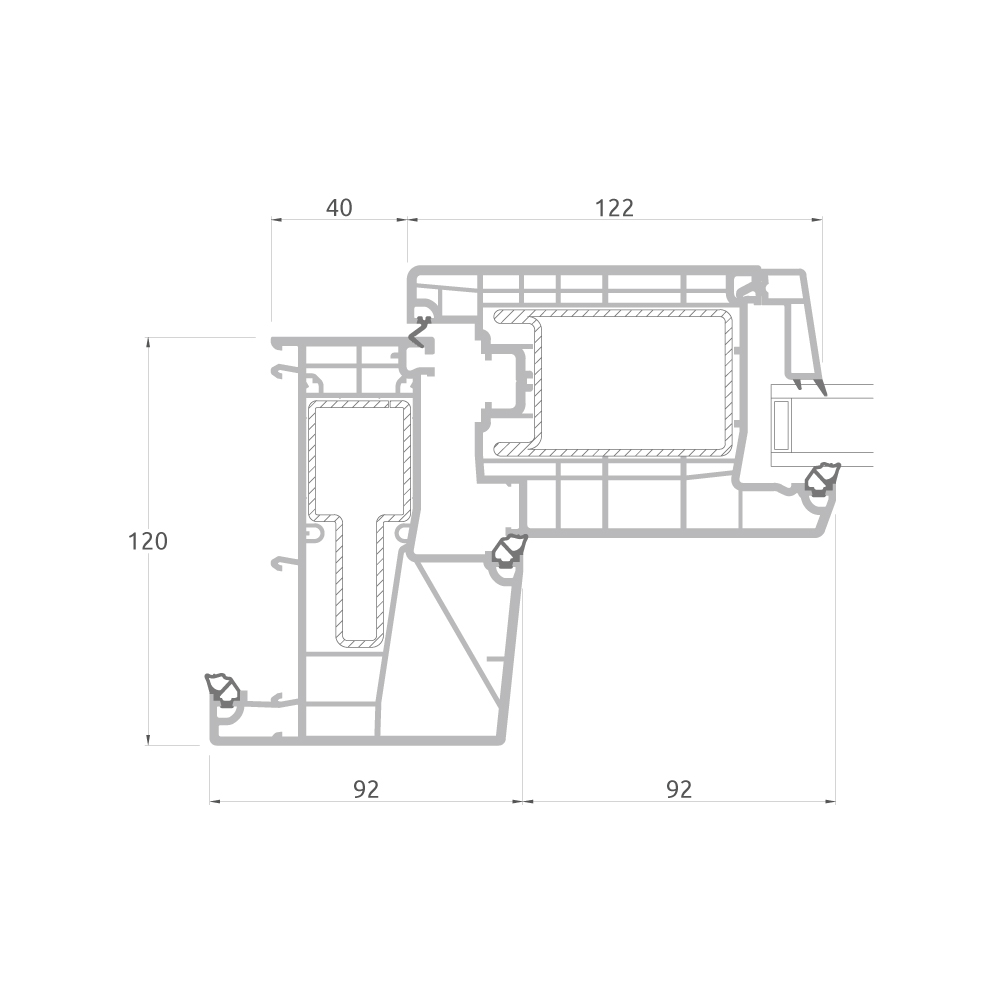

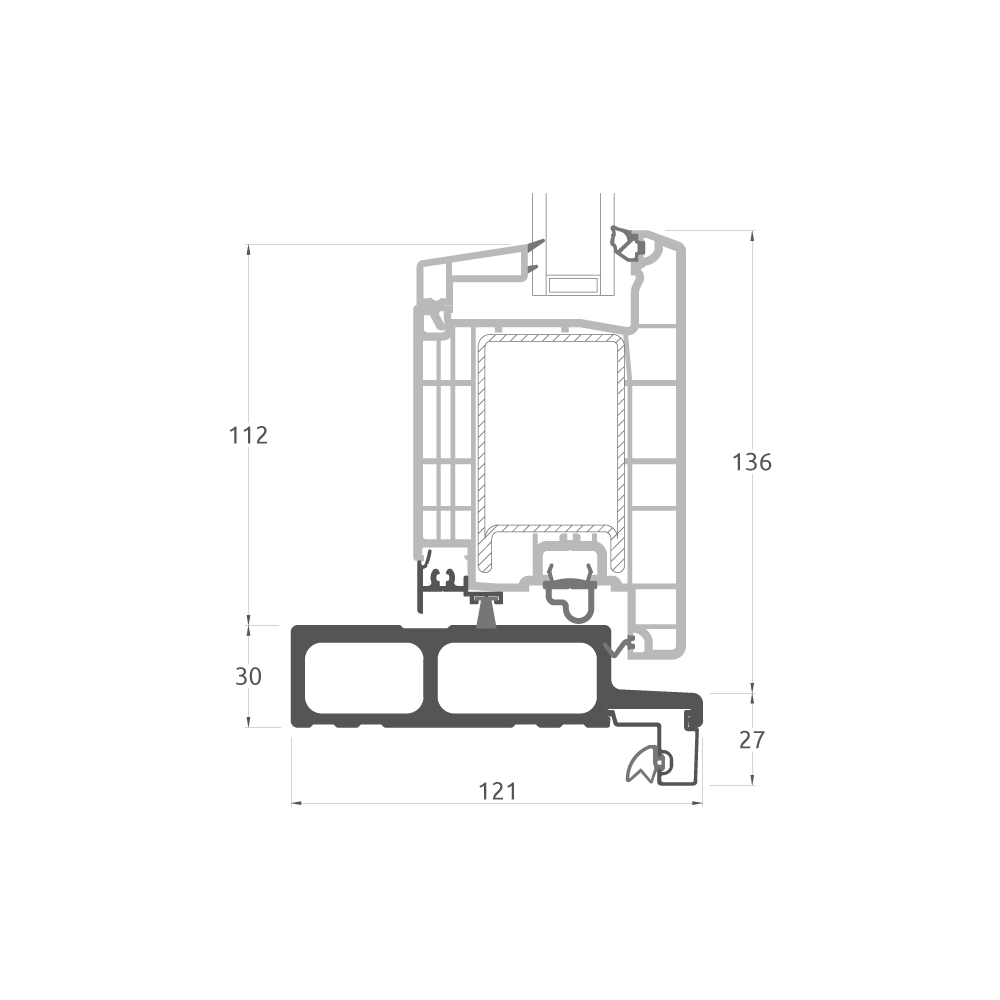

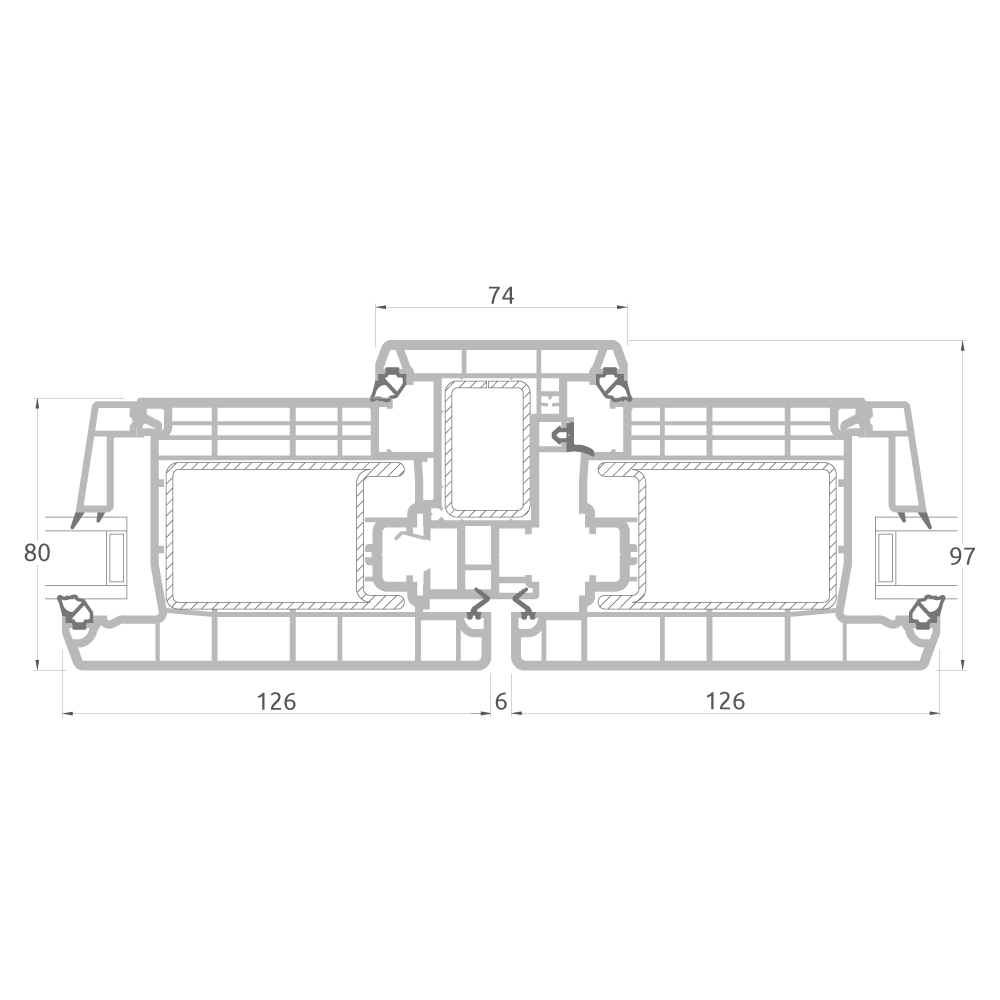

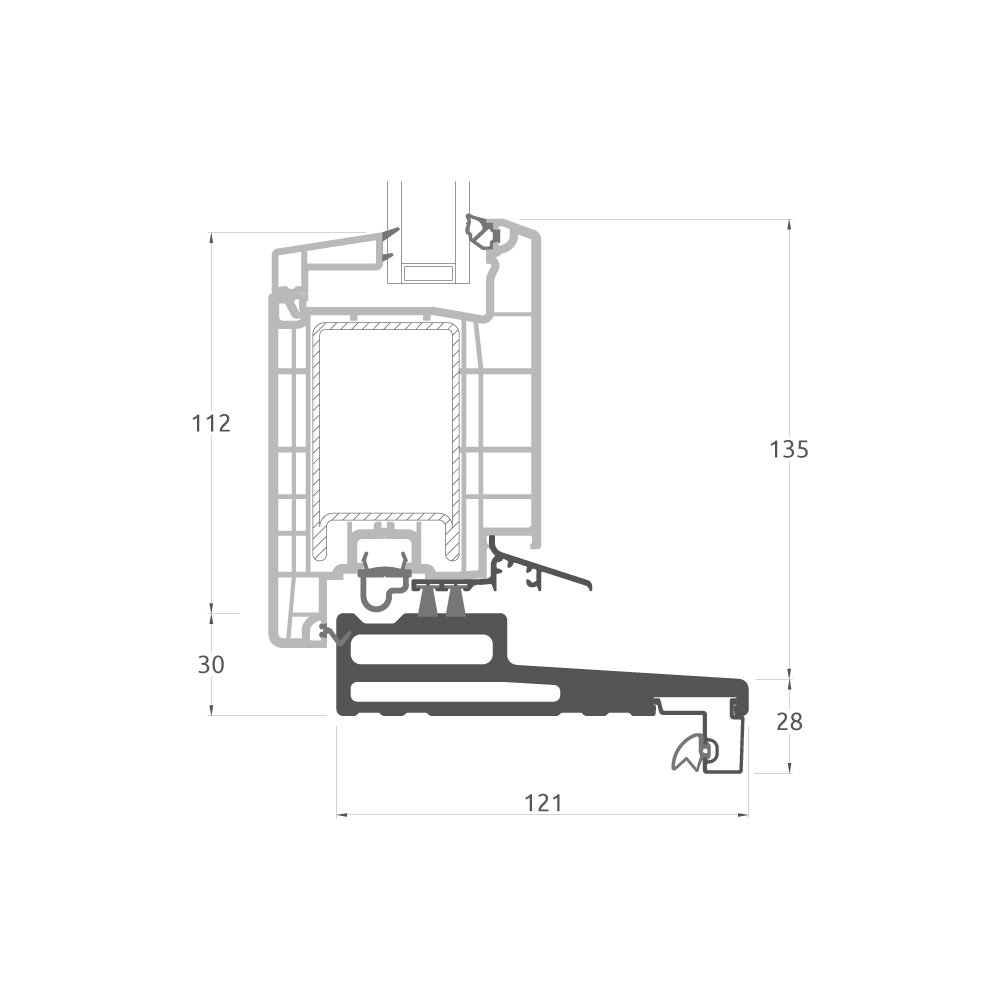

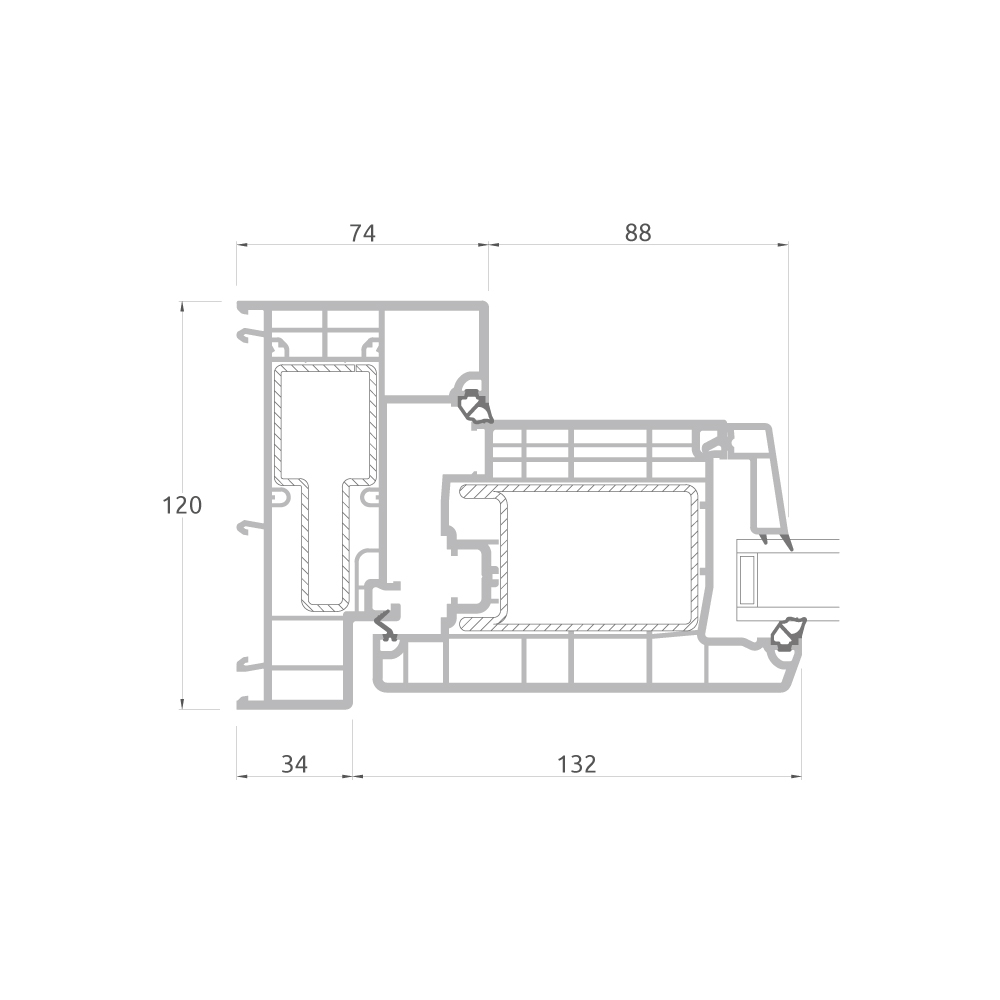

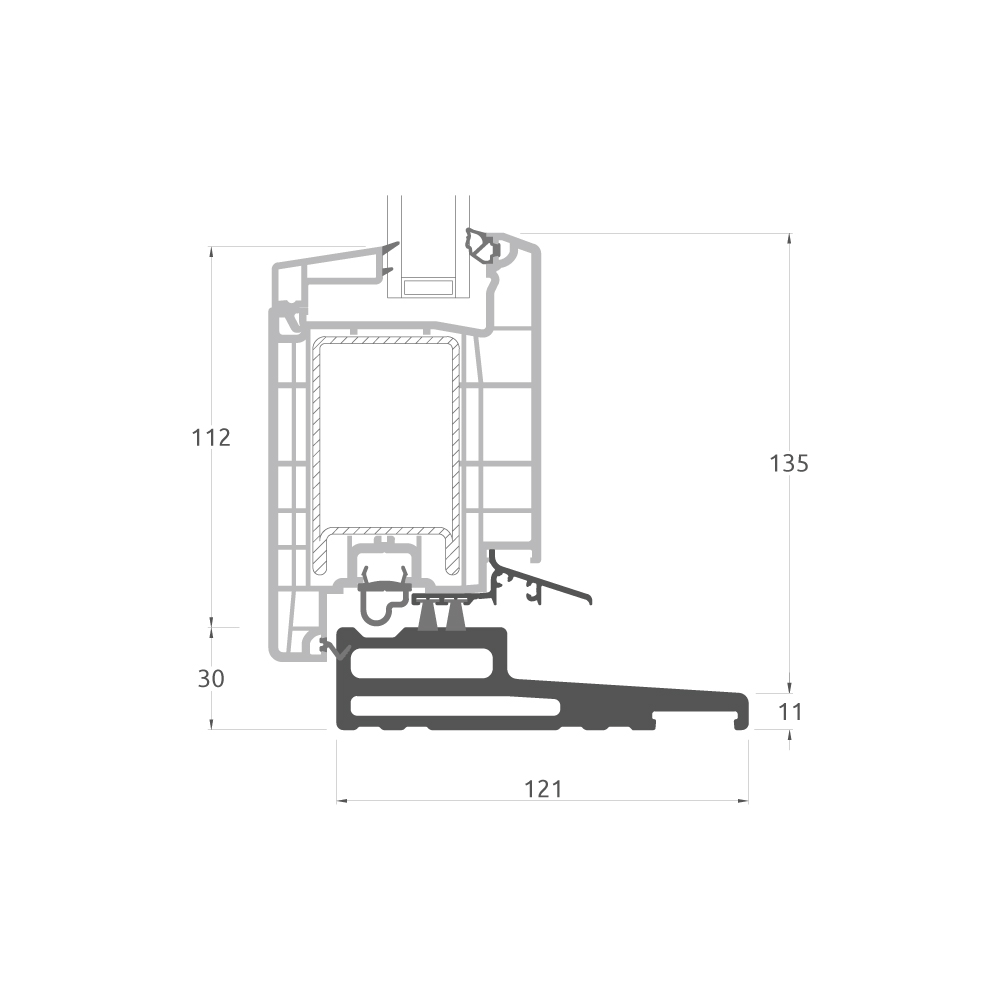

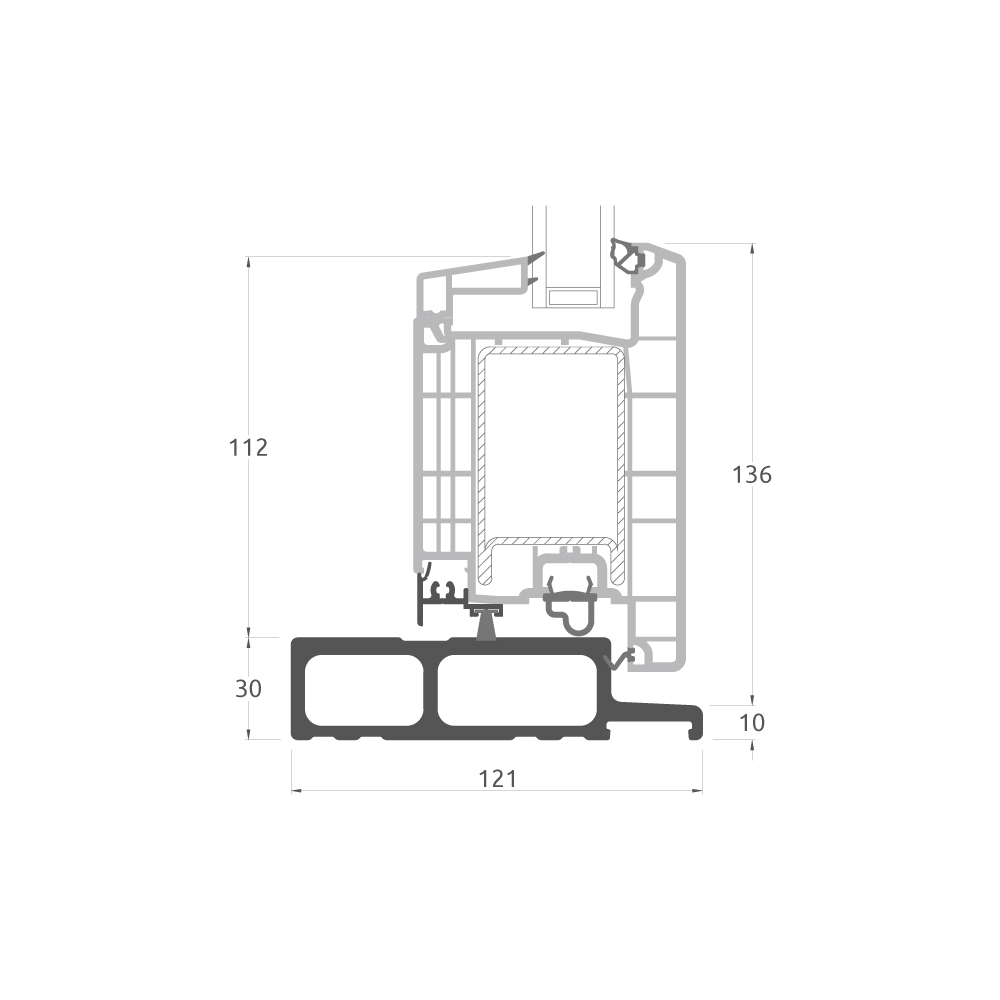

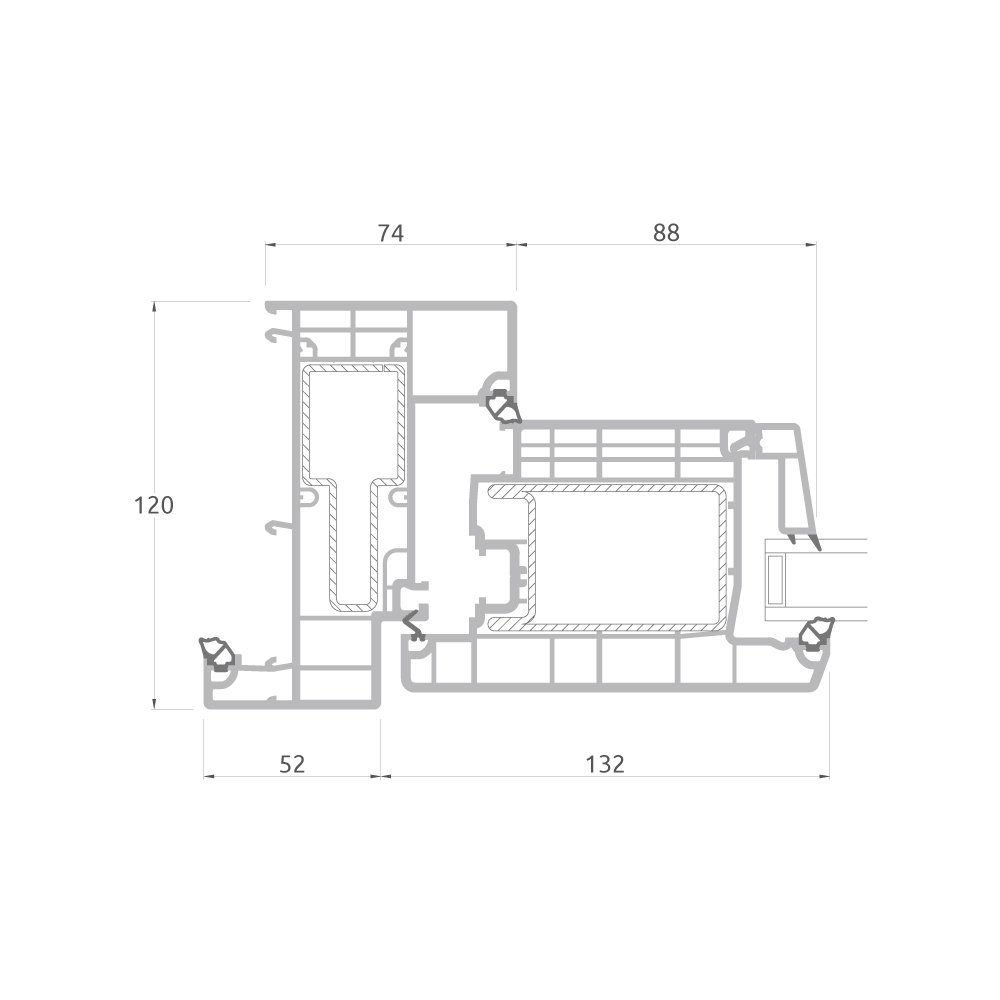

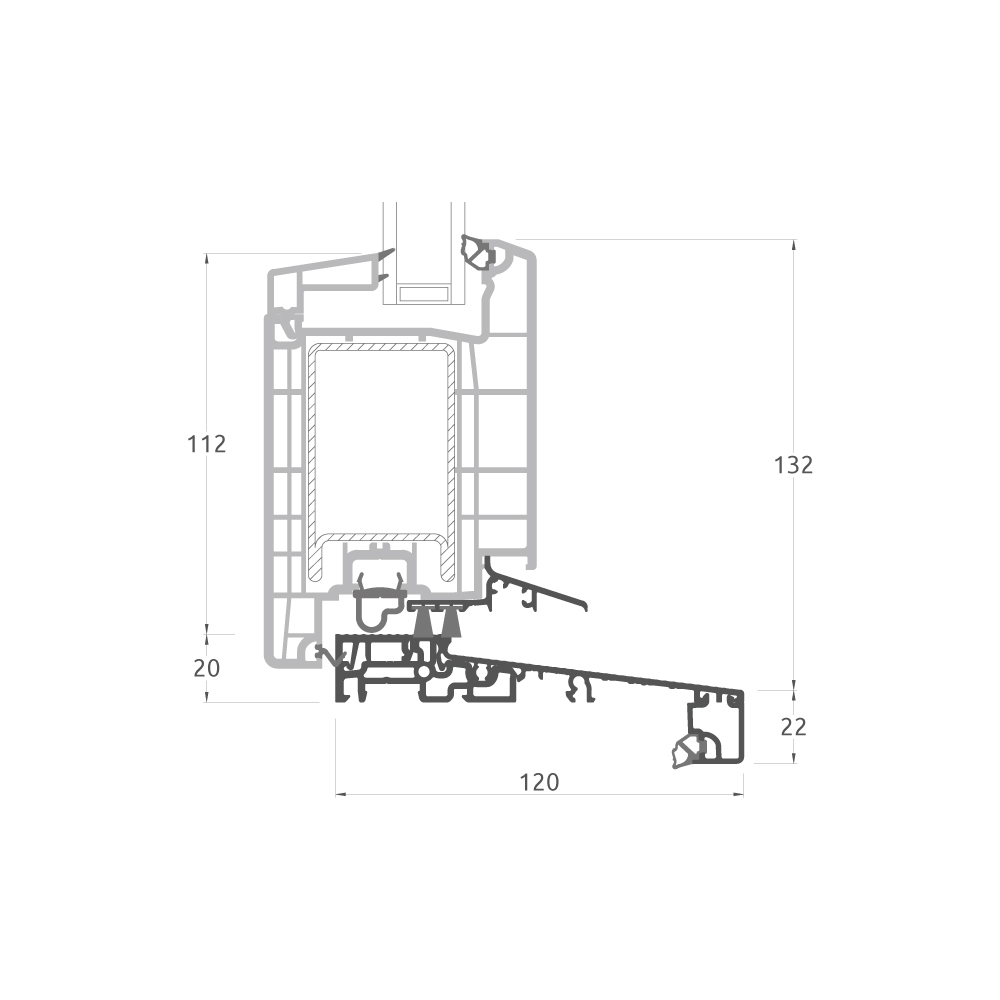

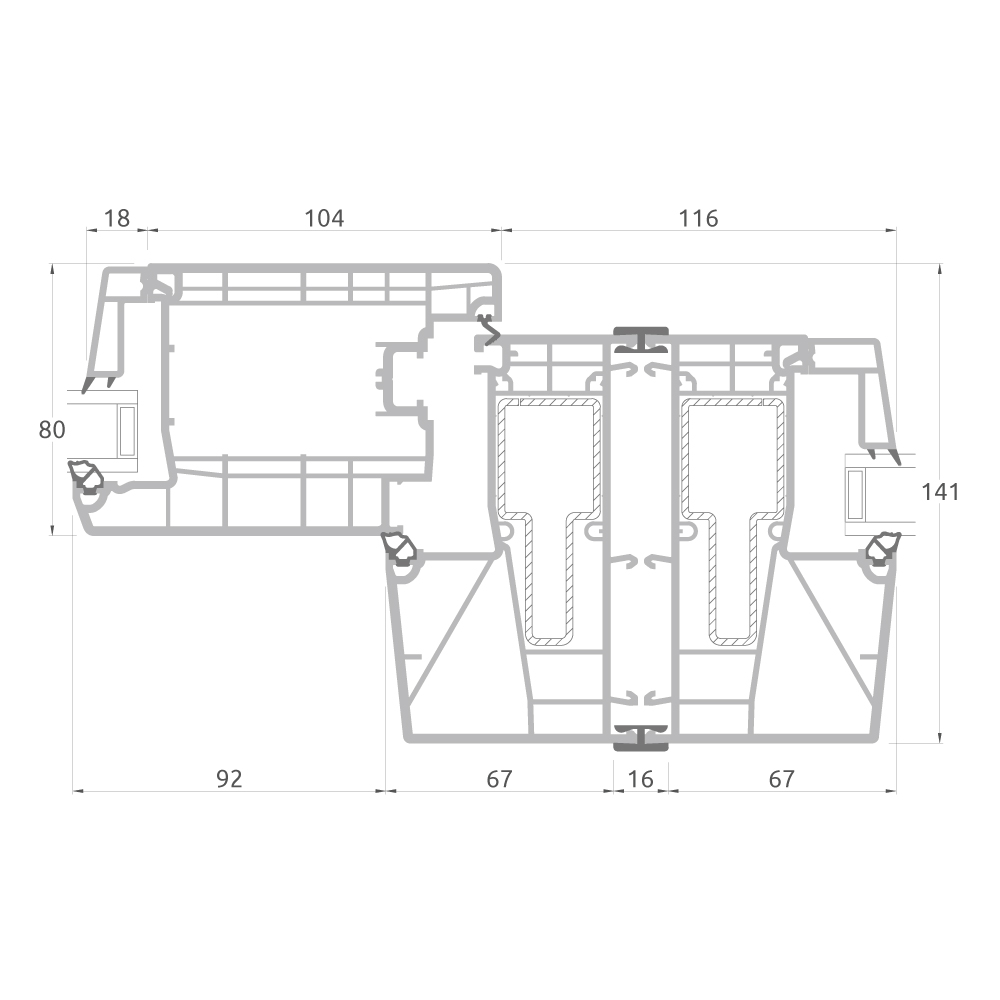

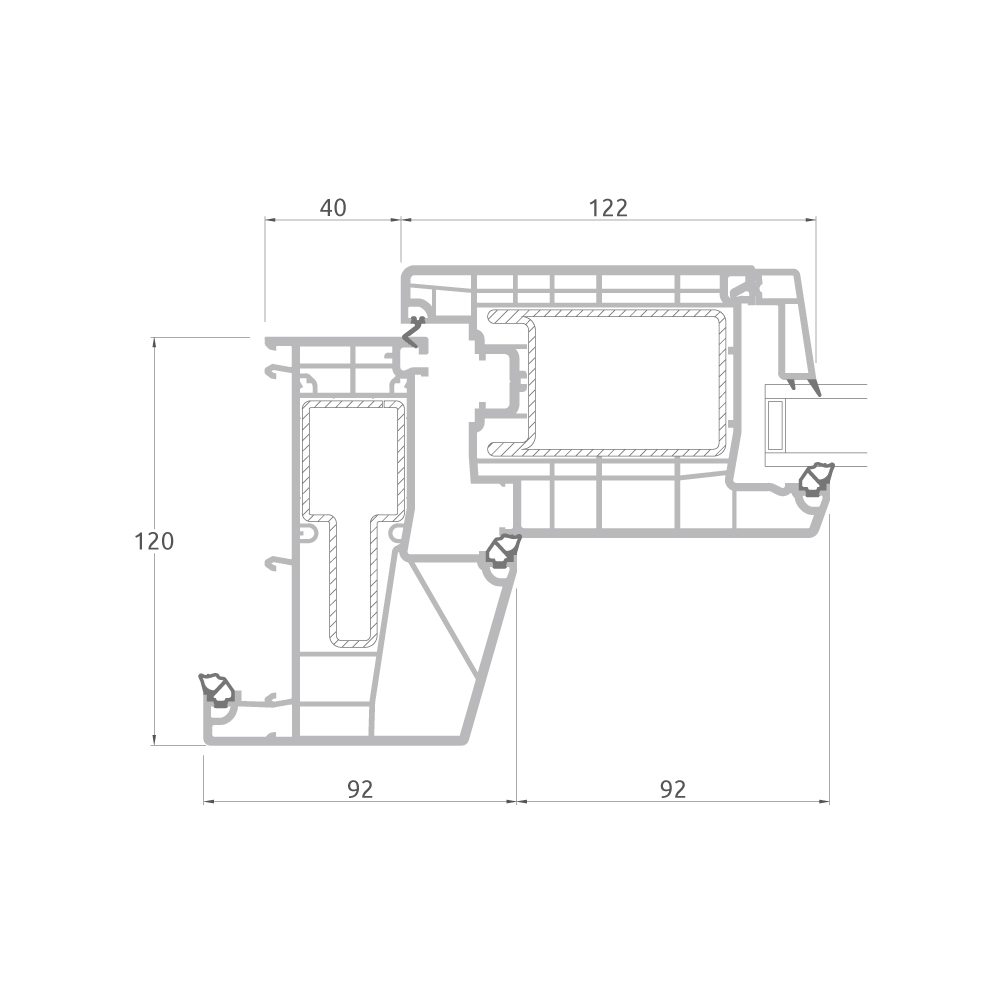

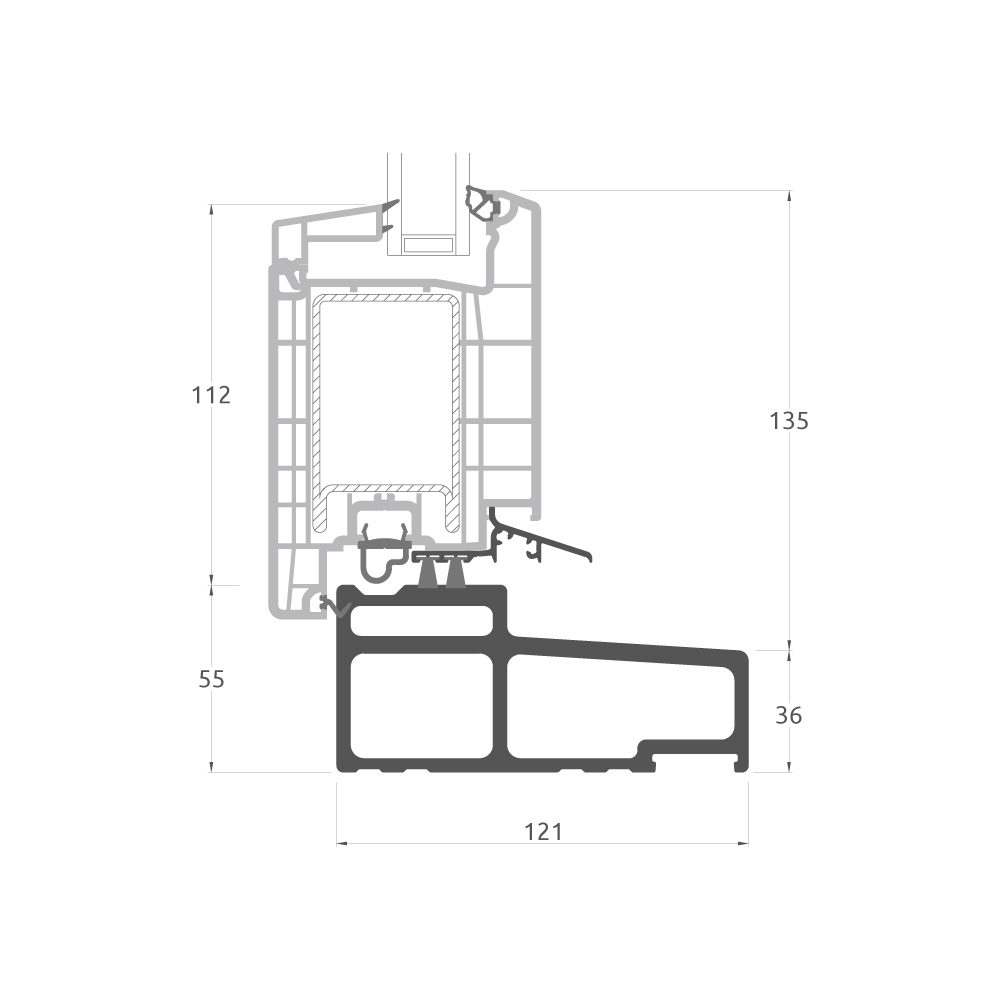

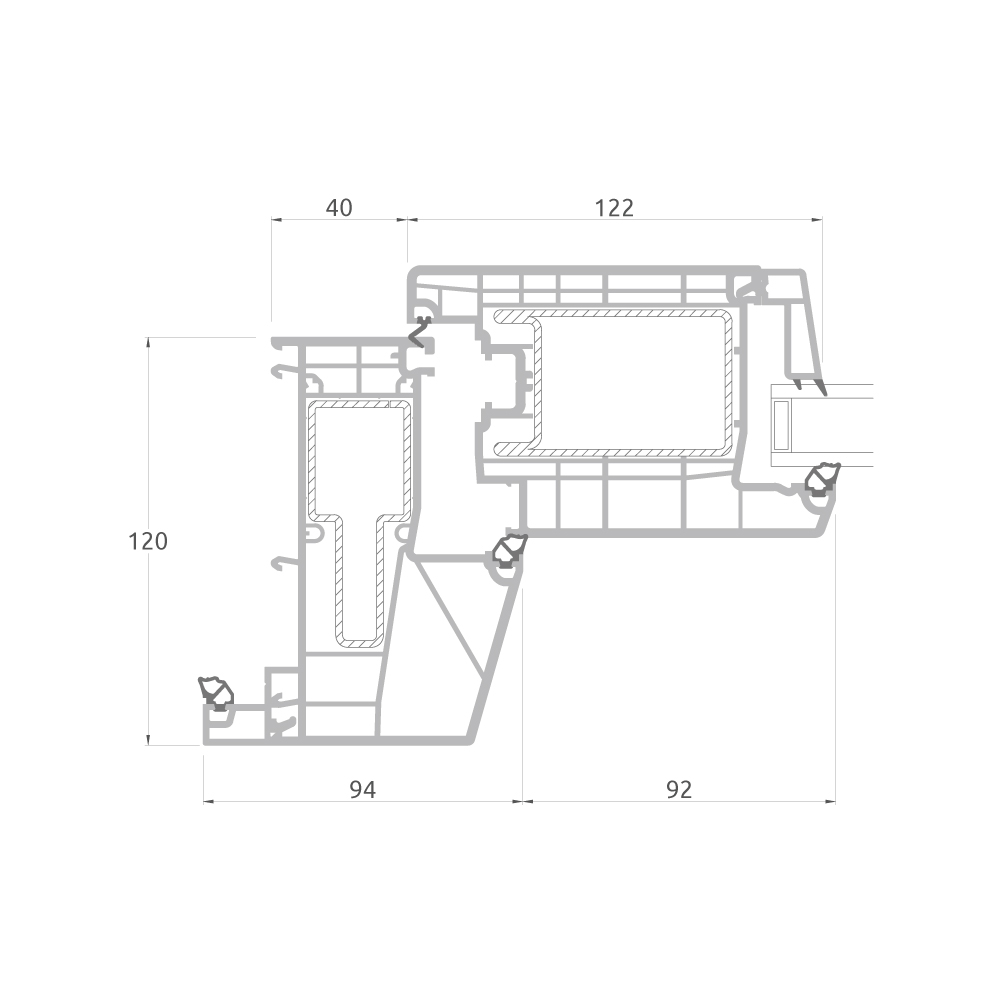

Cross-section drawings

Inward opening:

Outward opening:
